Bolt Removal/Installation Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. When removing or installing the bolt, hold the pressure plate as shown in Fig 1 .

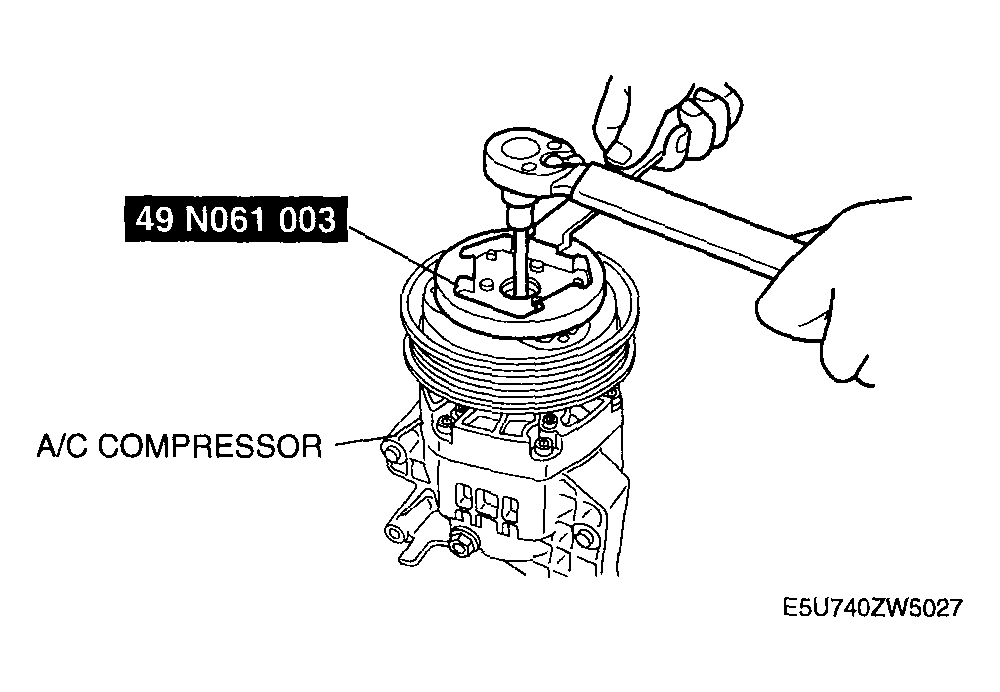

    Fig 1: Removing/Installing Bolt
    G04318842Courtesy of MAZDA MOTORS CORP.
