Pre-inspection Preparation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

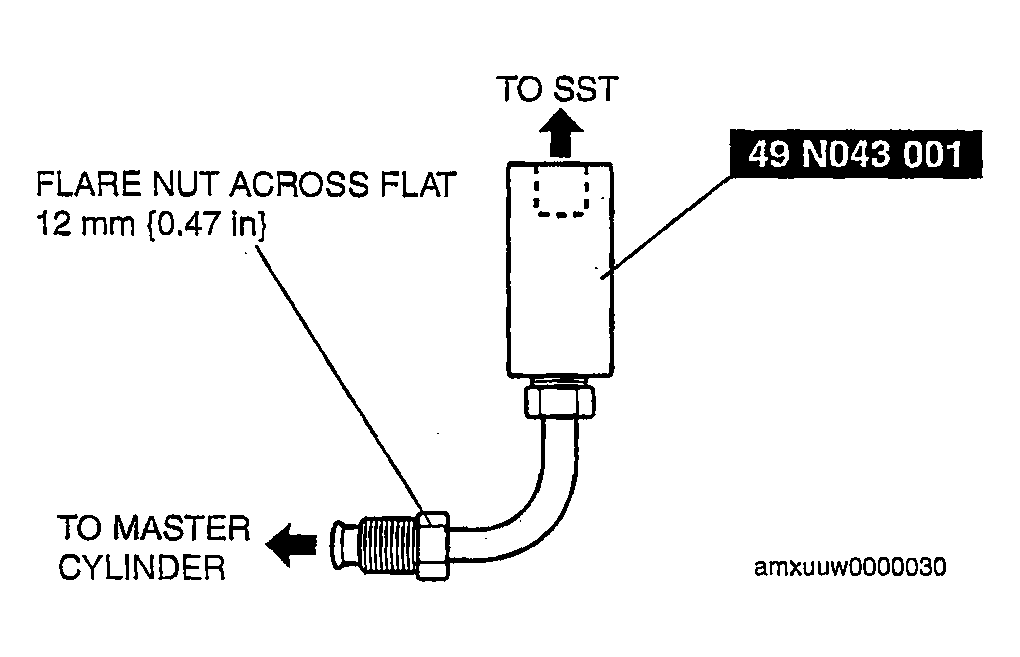

- Install the SST
(49 N043 001) in the orientation shown in Fig 1
, (with DSC)NOTE:
- Install the SST
(49 N043 001) to the master cylinder using a commercially available flare nut wrench.
- Flare nut across flat: 12 mm {0.47 in}
- Install the SST
(49 N043 001) to the master cylinder using a commercially available flare nut wrench.
- Connect the SSTs , a vacuum gauge and a pedal force gauge to the master cylinder and bleed the air from the SSTs and the brake line. (Bleed the air from the SSTs through air bleeding valve A.)
