Disc Pad (Front) Replacement

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in Fig 1 .
  2. Install in the reverse order of removal.
  3. After installation, depress the brake pedal a few times, then verify that the brakes do not drag.

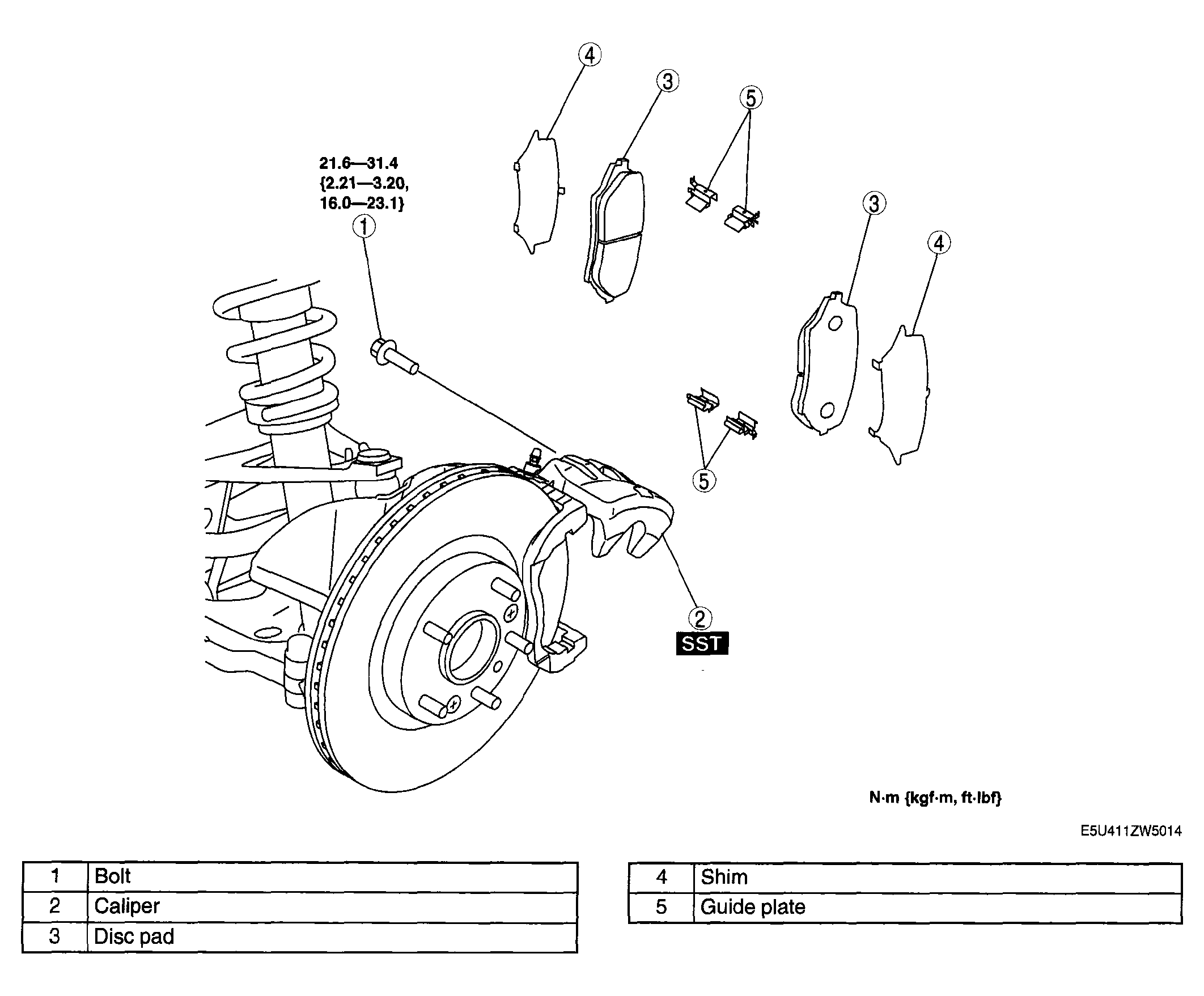

    Fig 1: Disc Pad Replacement Components (Front) With Torque Specifications
    G04318391Courtesy of MAZDA MOTORS CORP.
