License Plate Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Move the license plate light in the direction of the arrow (1) and detach the tab.
  4. Pull area A of the license plate light in the direction of the arrow (2) and remove the license plate light.
  5. Disconnect the connector.
  6. Detach the socket and remove the license plate light bulb.
  7. Install in the reverse order of removal.

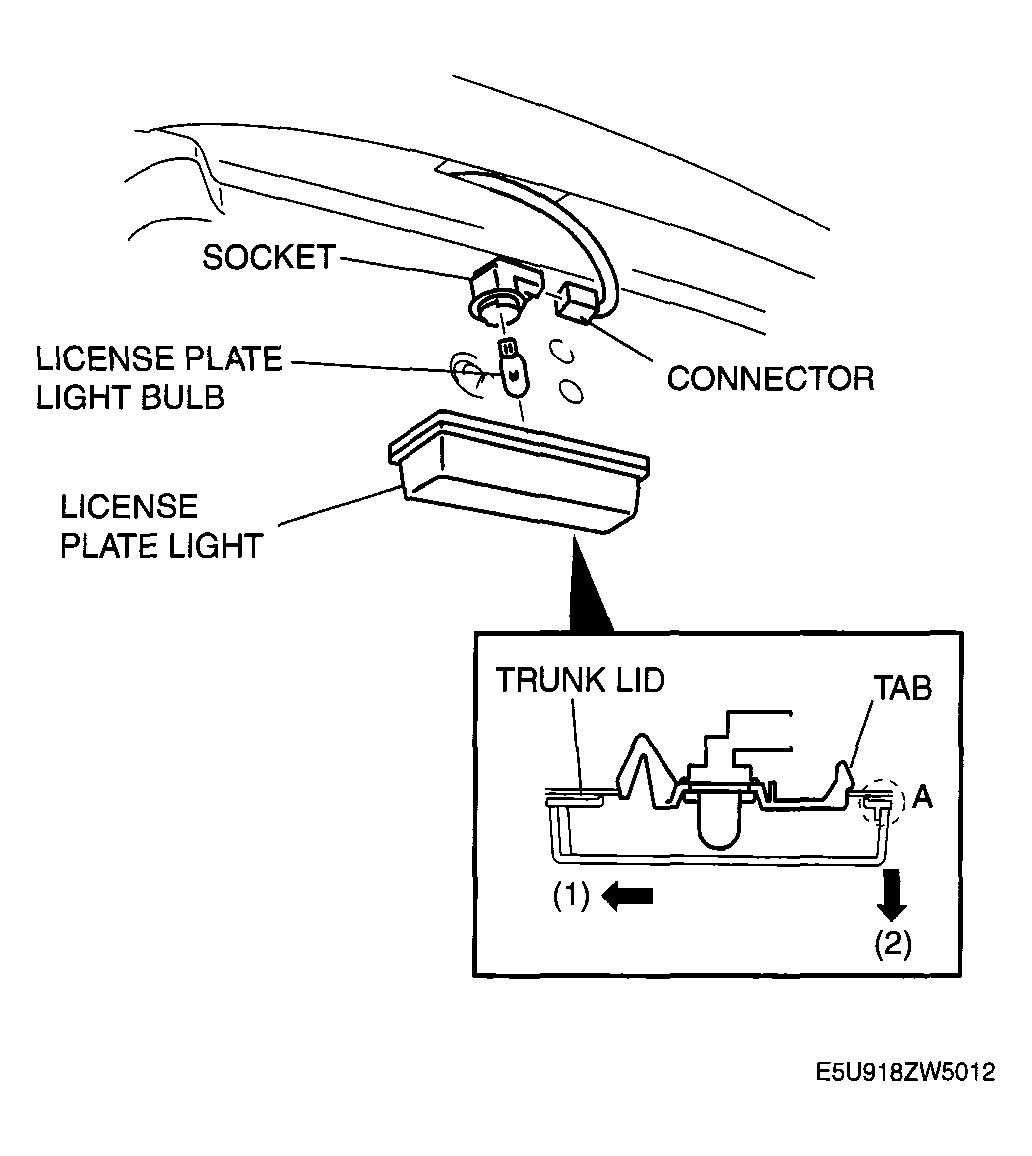

    Fig 1: Detaching Socket & Removing License Plate Light Bulb
    G04323710Courtesy of MAZDA MOTORS CORP.
