Front Side Marker Light Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Move the front side marker light in the direction of the arrow (1) and detach the tab.
  4. Pull area A of the front side marker light in the defection of arrow (2) and remove the front side marker light.
  5. Detach the socket and remove the front side marker light bulb.
  6. Install in the reverse order of removal.

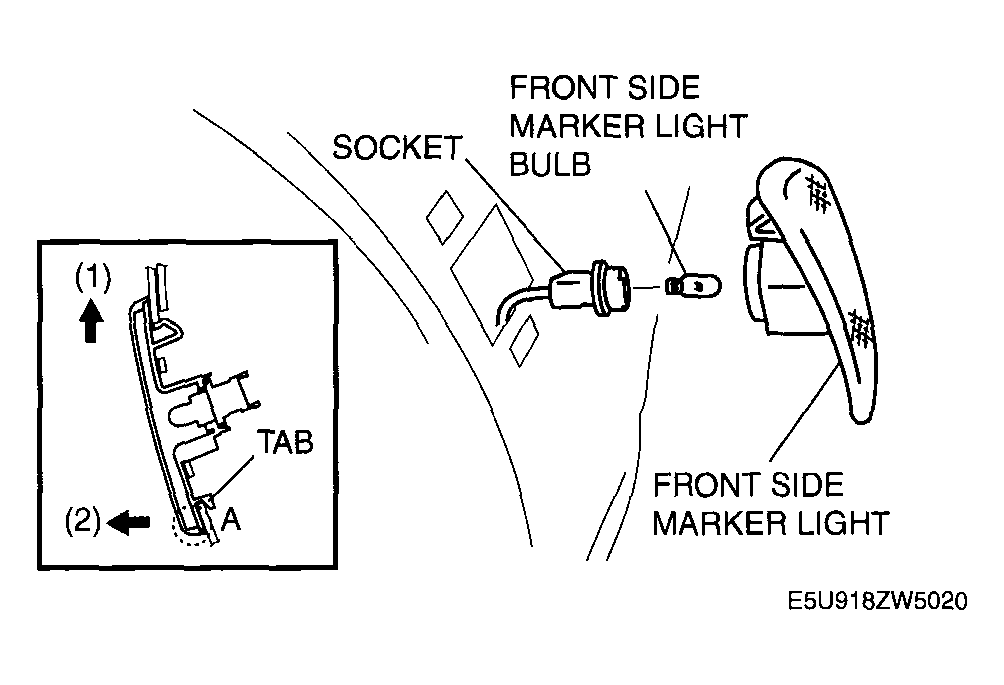

    Fig 1: Removing Front Side Marker Light Bulb
    G04323707Courtesy of MAZDA MOTORS CORP.
