Door Switch Inspection

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door switch. (See DOOR SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between door switch terminal and the body ground is as indicated in Fig 1 .
- If not as indicated in Fig 1 , replace the door switch.

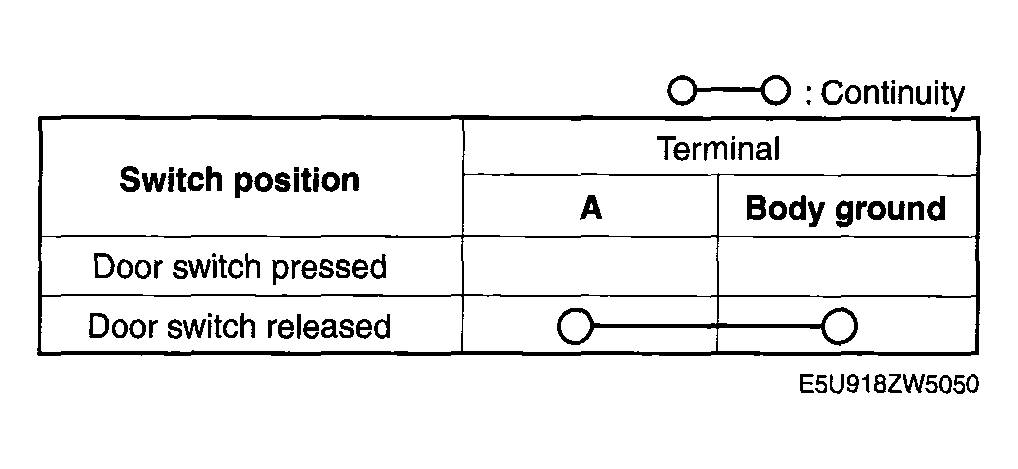

Fig 1: Door Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.

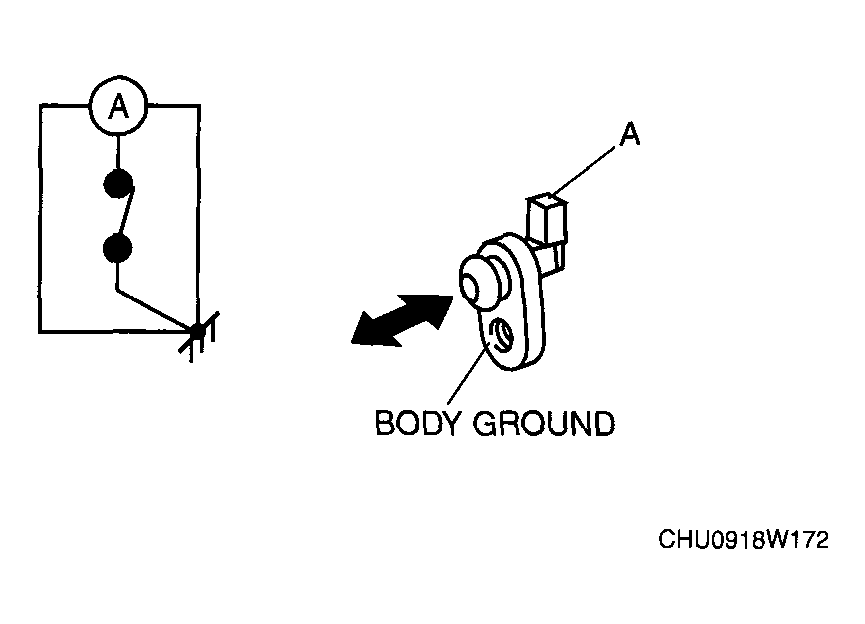

Fig 2: Identifying Door Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
