Trunk Mat Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fasteners.
  2. Remove the trunk mat.
  3. Remove the seal fasteners.
  4. Install in the reverse order of removal.

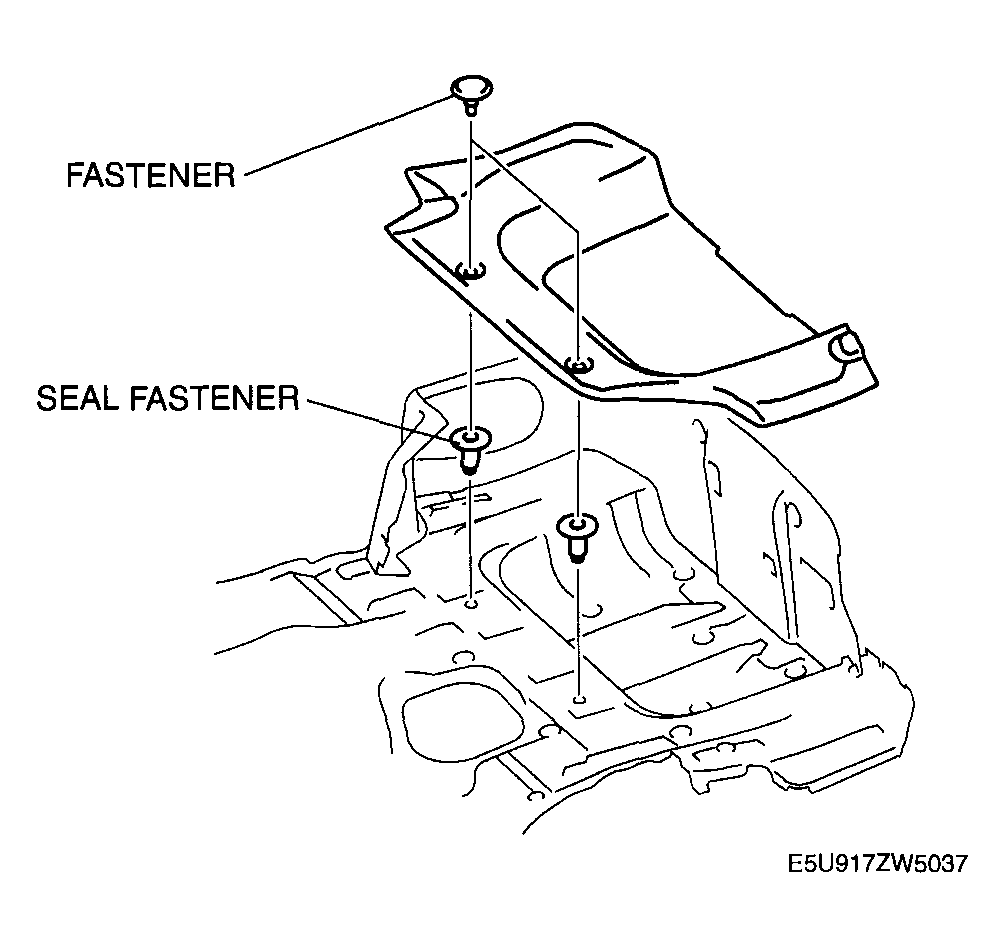

    Fig 1: Identifying Trunk Mat
    G04323671Courtesy of MAZDA MOTORS CORP.
