Side Panel Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

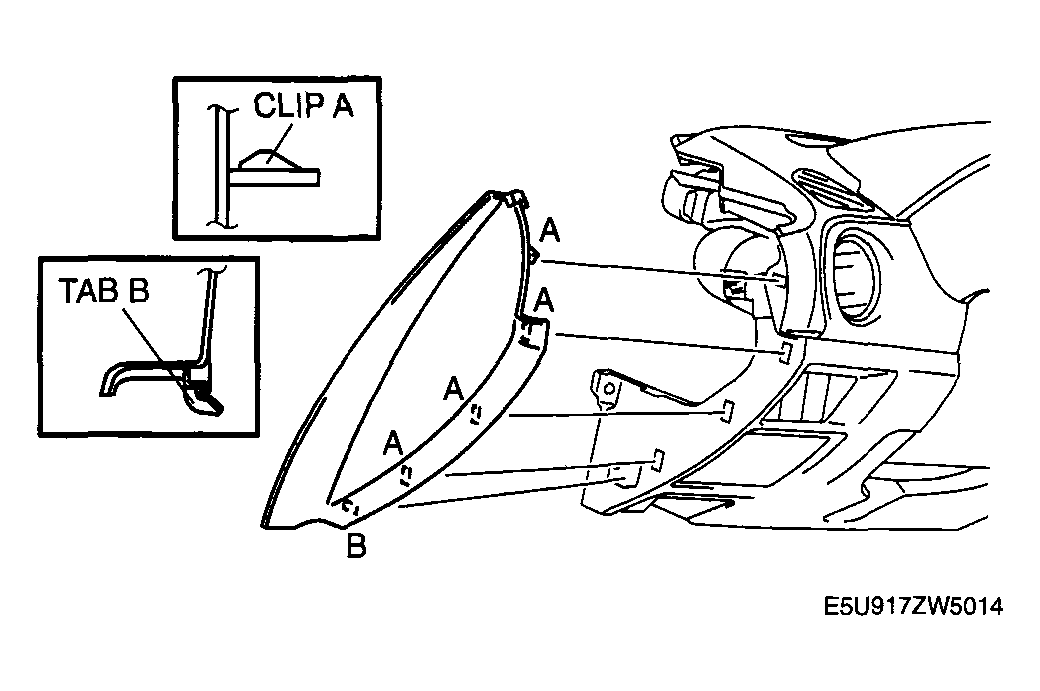

- Pull the side panel outward and detach clips A.
- Pull the side panel rearward and detach tab B from the dashboard.
- Remove the side panel.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
