Lower Panel Removal/Installation
WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

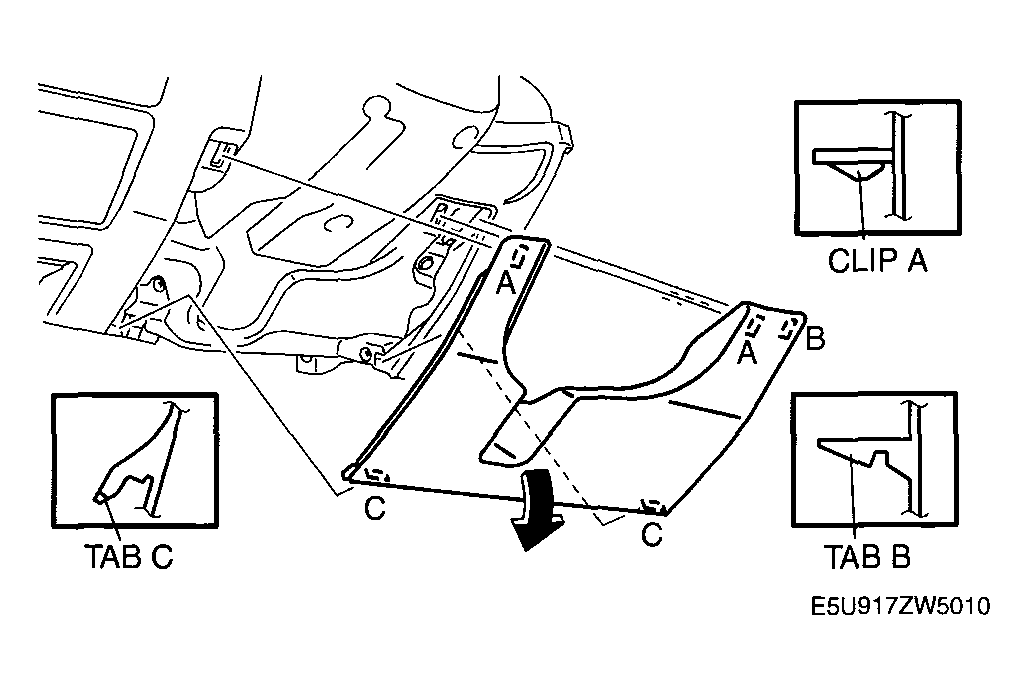

- Pull the lower panel outward and detach clips A and tab B.
- Turn the lower panel downward and remove the tabs C.
- Remove the lower panel.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.
