WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

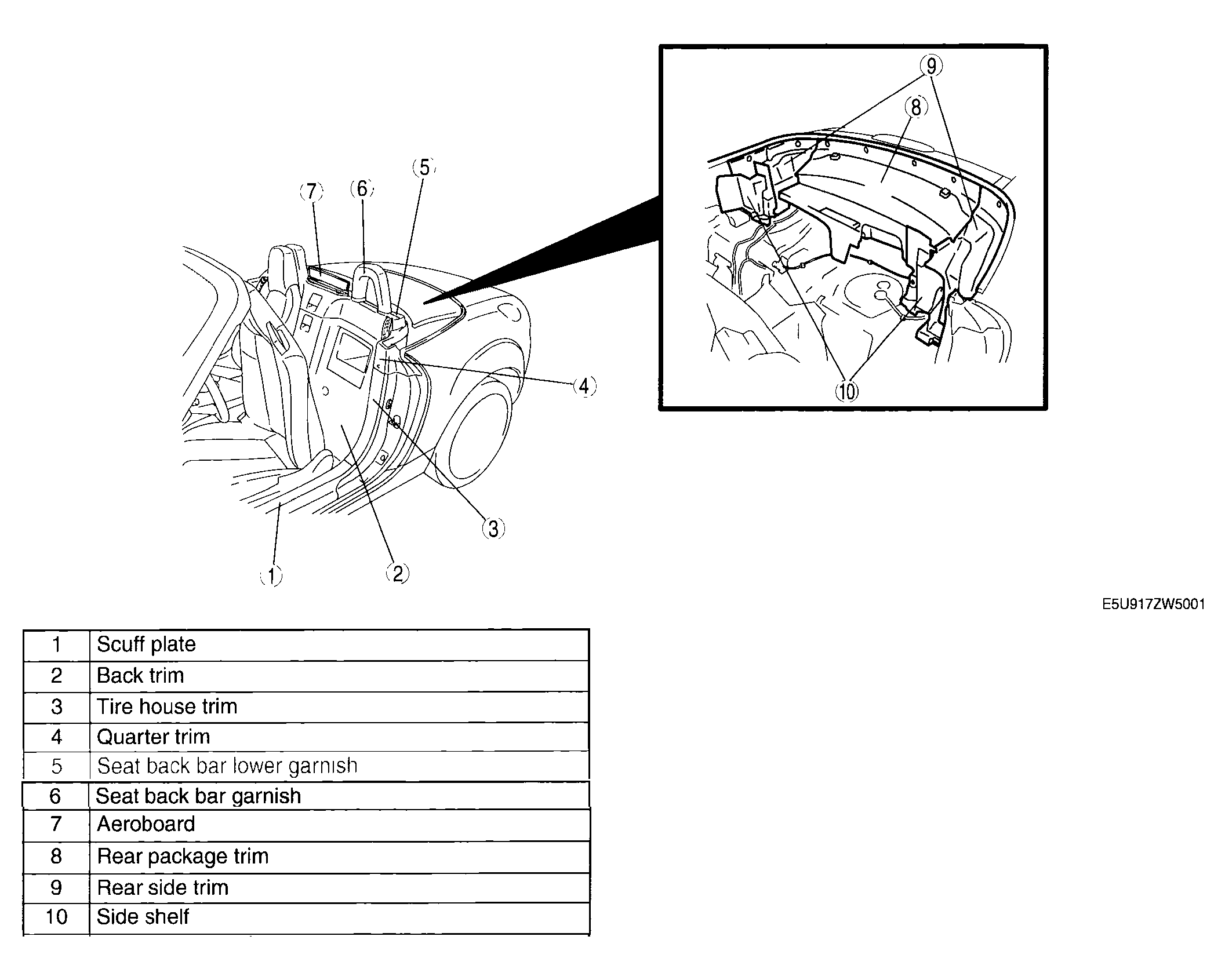

Fig 1: Identifying Location Of Interior Trim Components (1 Of 3)
Courtesy of MAZDA MOTORS CORP.

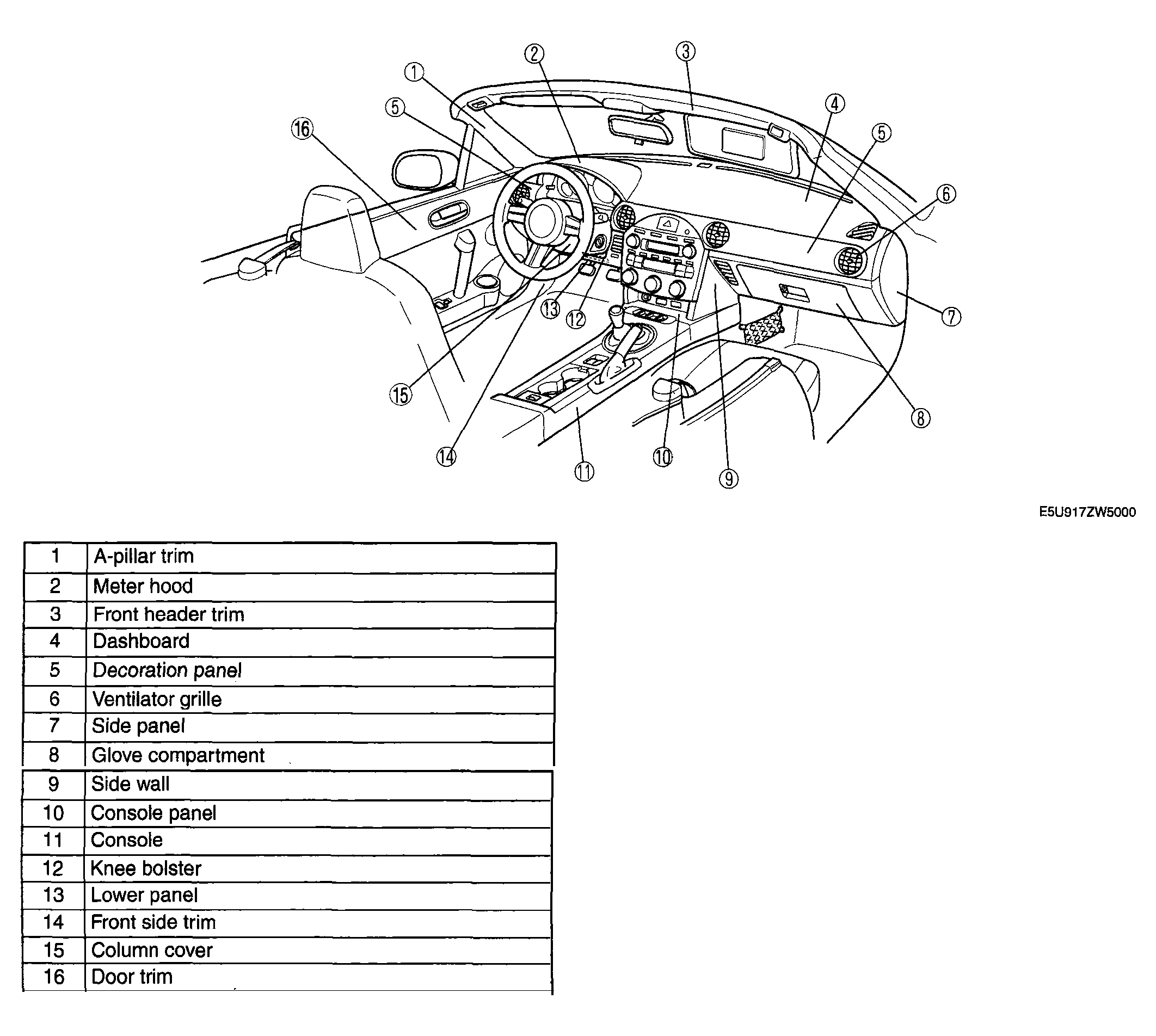

Fig 2: Identifying Location Of Interior Trim Components (2 Of 3)
Courtesy of MAZDA MOTORS CORP.

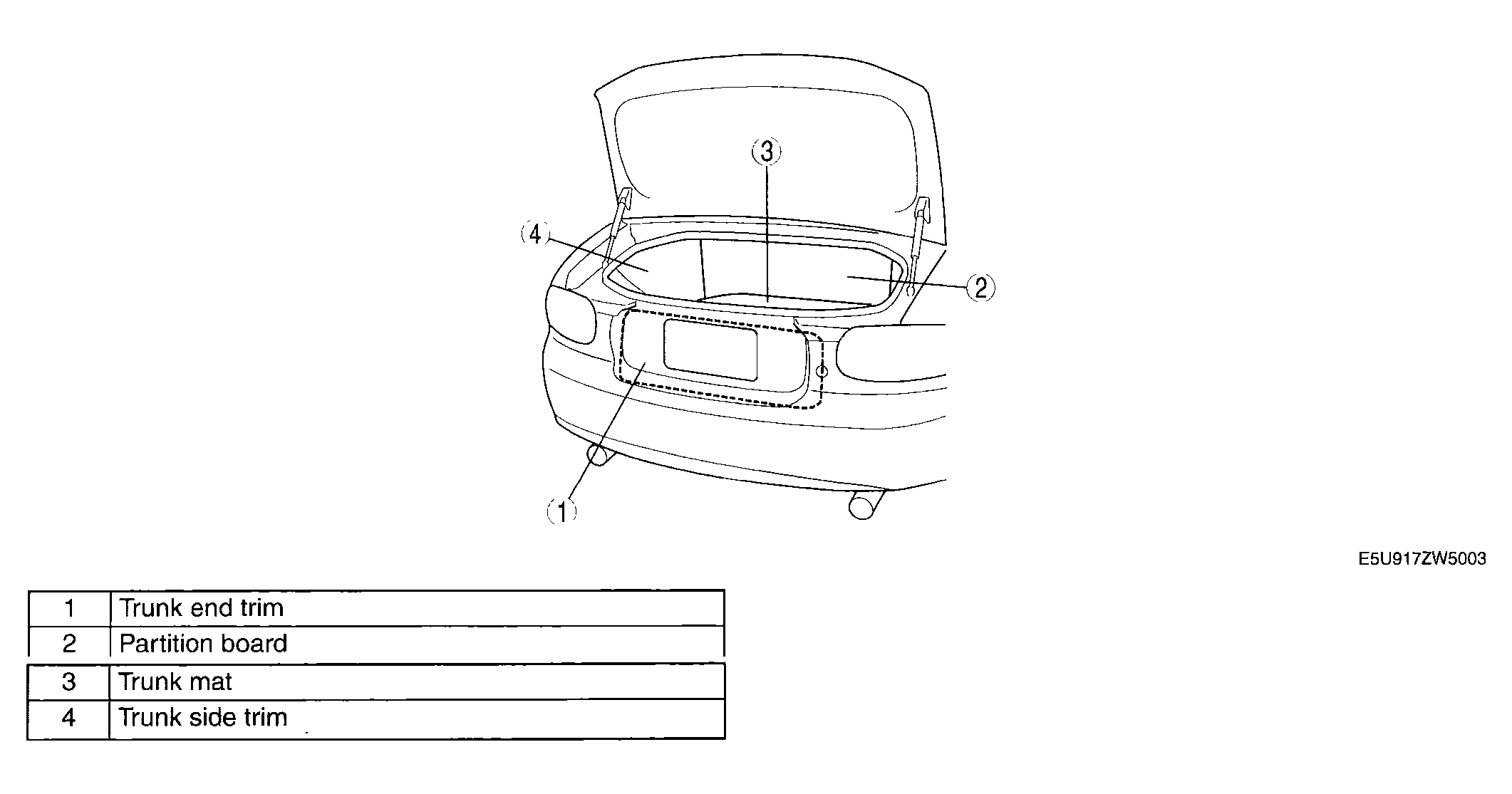

Fig 3: Identifying Location Of Interior Trim Components (3 Of 3)
