Front Header Trim Removal/Installation: Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not twist or drop the front header trim, otherwise the vanity mirror could be damaged.
  • If the front header trim is installed with the sunvisor pulled up, the vanity mirror could be damaged. Always install the front header trim with the sunvisor pulled down.
  1. Install the pin A and clip B.
  2. Pull down the sunvisor on the right, then install pin C and clips D.
  3. Pull down the sunvisor on the left, then install pin E and clips F.
  4. Install the screw.
  5. Install the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION  .)
  6. Install the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
  7. Install the female wedge. (See CONVERTIBLE TOP DISASSEMBLY/ASSEMBLY .)

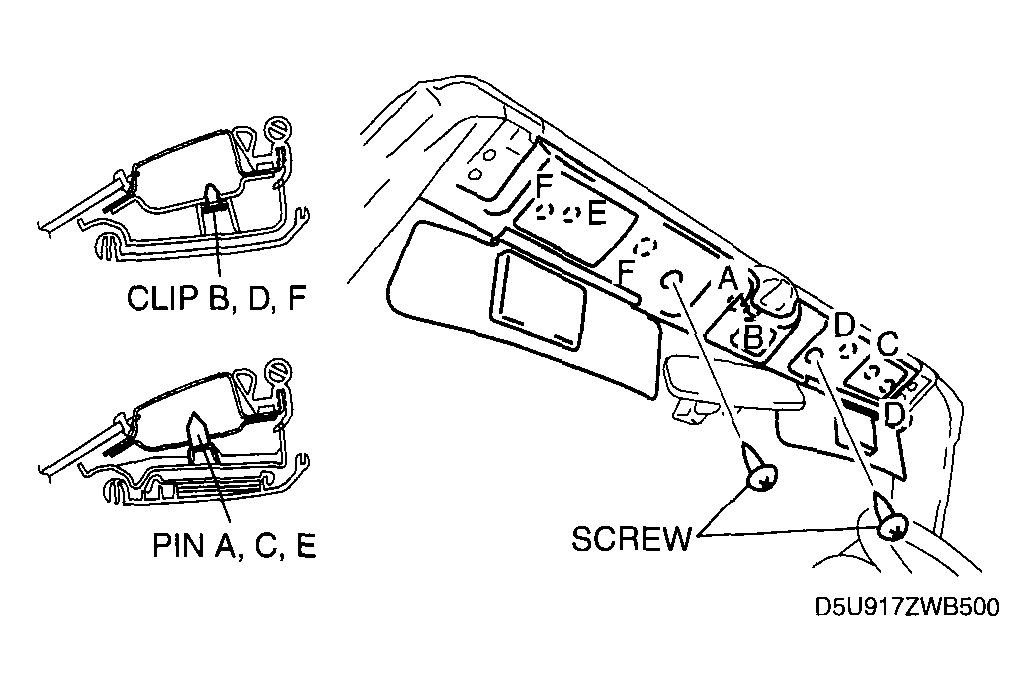

    Fig 1: Installing Front Header Trim
    G04323651Courtesy of MAZDA MOTORS CORP.
  8. Connect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  9. Install the battery cover.
