Floor Covering Removal/Installation: Notes

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery cover.
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  3. Remove the following parts:
    1. Seat (See SEAT REMOVAL/INSTALLATION .)
    2. Console (See CONSOLE REMOVAL/INSTALLATION  .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION
    4. Console panel (See CONSOLE PANEL REMOVAL/INSTALLATION  .)
    5. Foot rest
    6. Quarter trim (See QUARTER TRIM REMOVAL/INSTALLATION  .)
    7. Scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION  .)
    8. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION  .)
    9. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION  .)
    10. Aeroboard (See AEROBOARD REMOVAL/INSTALLATION  .)
    11. Front seat back bar garnish (See SEAT BACK BAR GARNISH REMOVAL/INSTALLATION  .)
    12. Back trim (See BACK TRIM REMOVAL/INSTALLATION  .)
  4. Cut away the floor covering as shown in Fig 1.
    NOTE:
    • The cut part needs to match up when installing the floor covering.

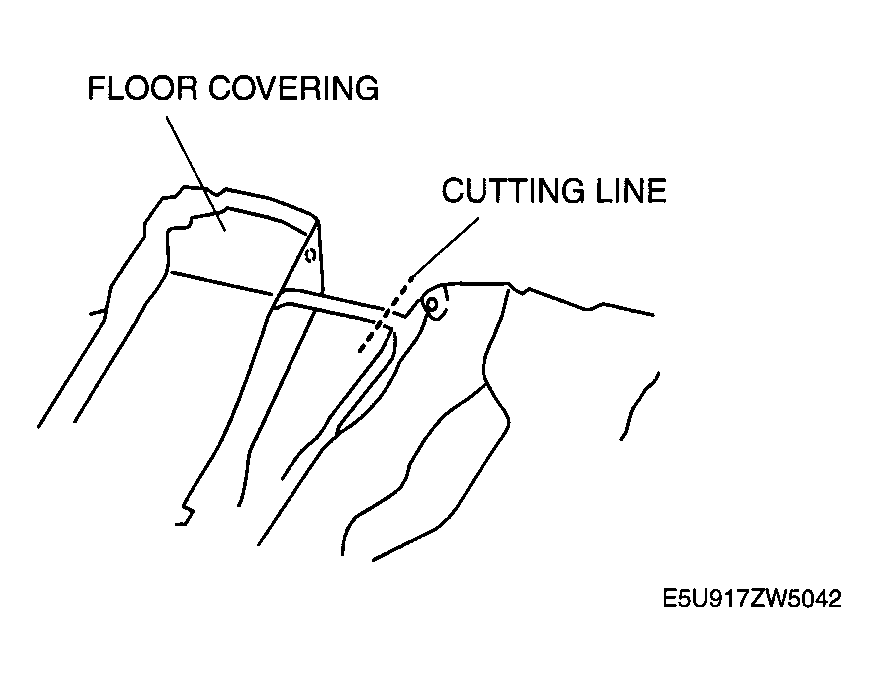

    Fig 1: Identifying Floor Covering Cutting Line
    G04323672Courtesy of MAZDA MOTORS CORP.
  5. Remove the fasteners.
  6. Remove the floor covering.
  7. Install in the reverse order of removal.

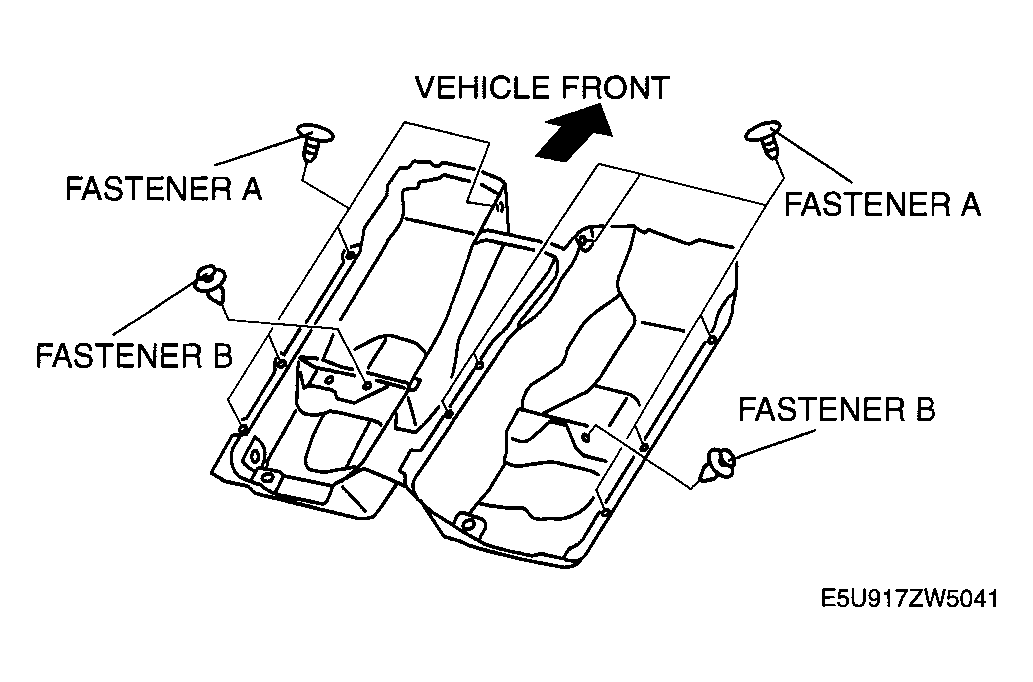

    Fig 2: Removing Floor Covering Fasteners
    G04323673Courtesy of MAZDA MOTORS CORP.
