Dashboard Disassembly/Assembly

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION  .)
    2. Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .)
    3. Center speaker cover (See CENTER SPEAKER REMOVAL/INSTALLATION .)
    4. Center speaker (vehicles with BOSE) (See CENTER SPEAKER REMOVAL/INSTALLATION .)
    5. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in Fig 1 .
  3. Assemble in the reverse order of disassembly.

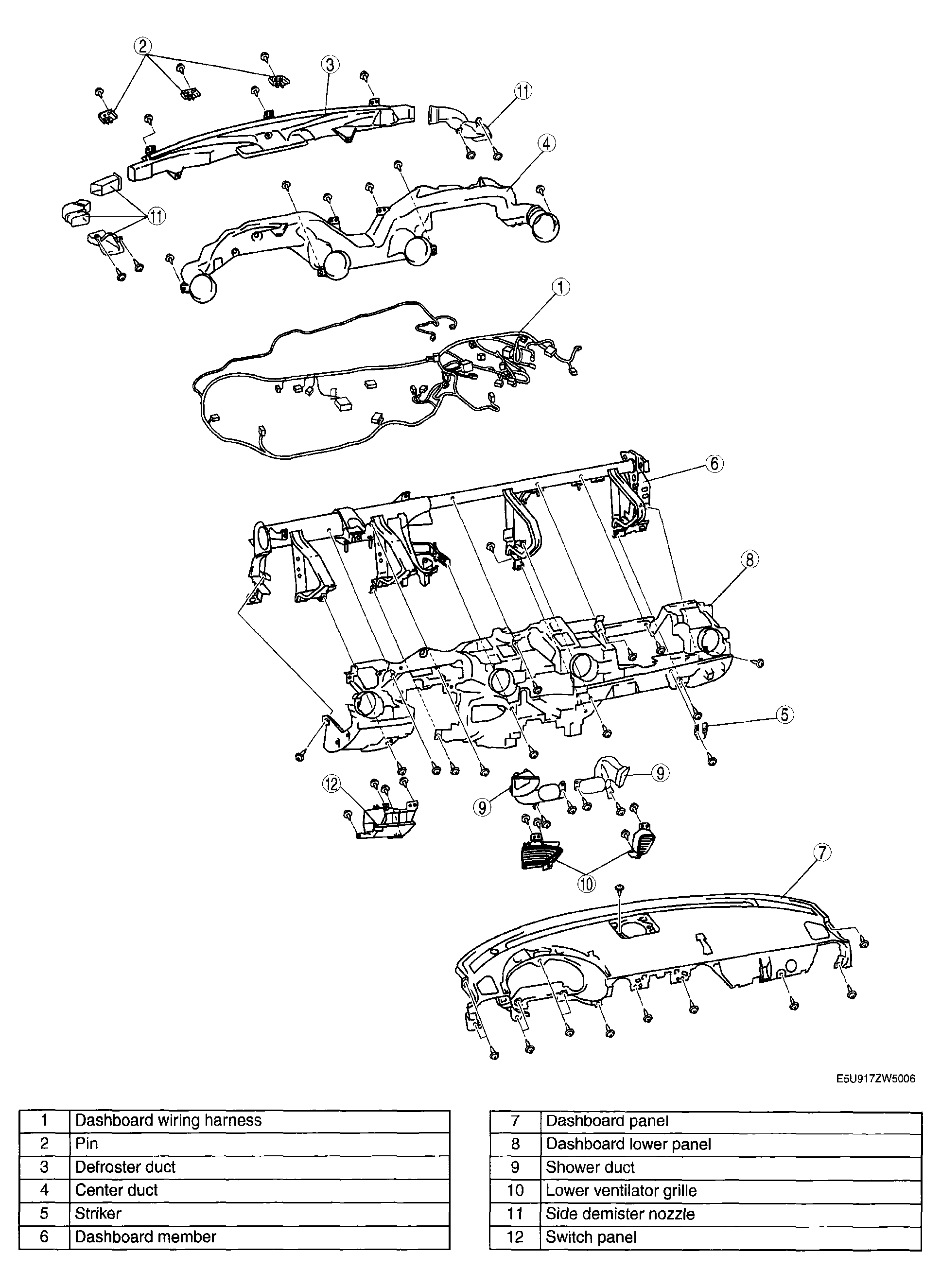

    Fig 1: Exploded View Of Dashboard
    G04323633Courtesy of MAZDA MOTORS CORP.
