Front Cover Removal Note

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Adhere protective tape in the shaded area shown in the figure and remove the clips using a fastener remover inserted in the position indicated by the arrow.

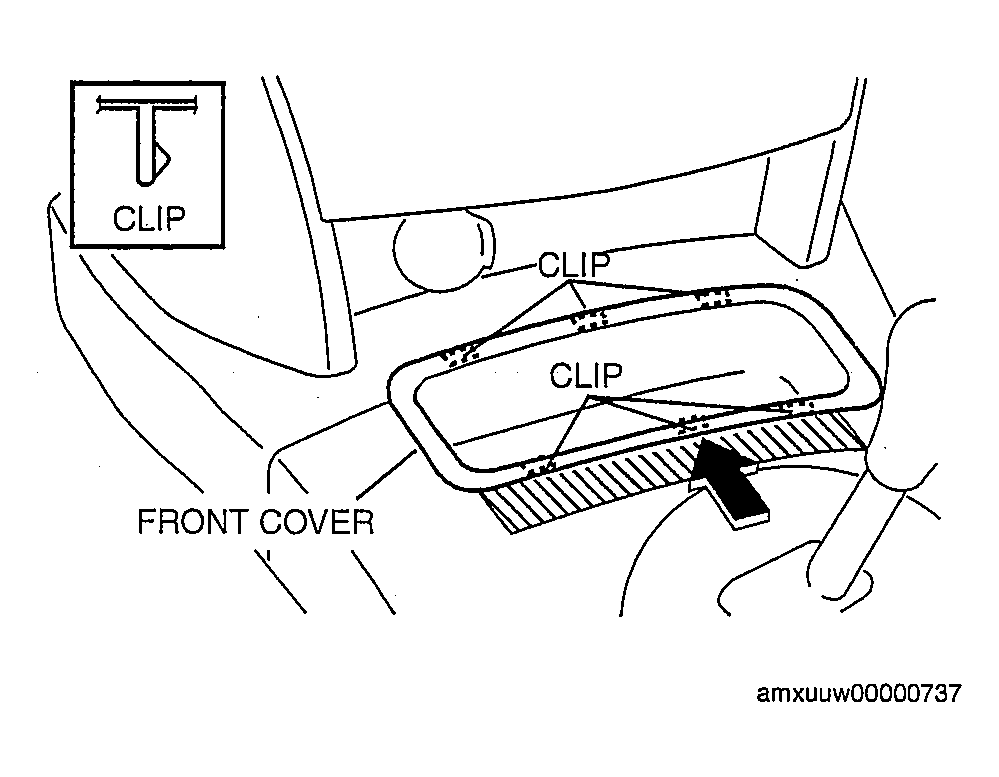

Fig 1: Identifying Front Cover Clips & Protective Tape
Courtesy of MAZDA MOTORS CORP
Remove the front cover in the direction shown in the figure.

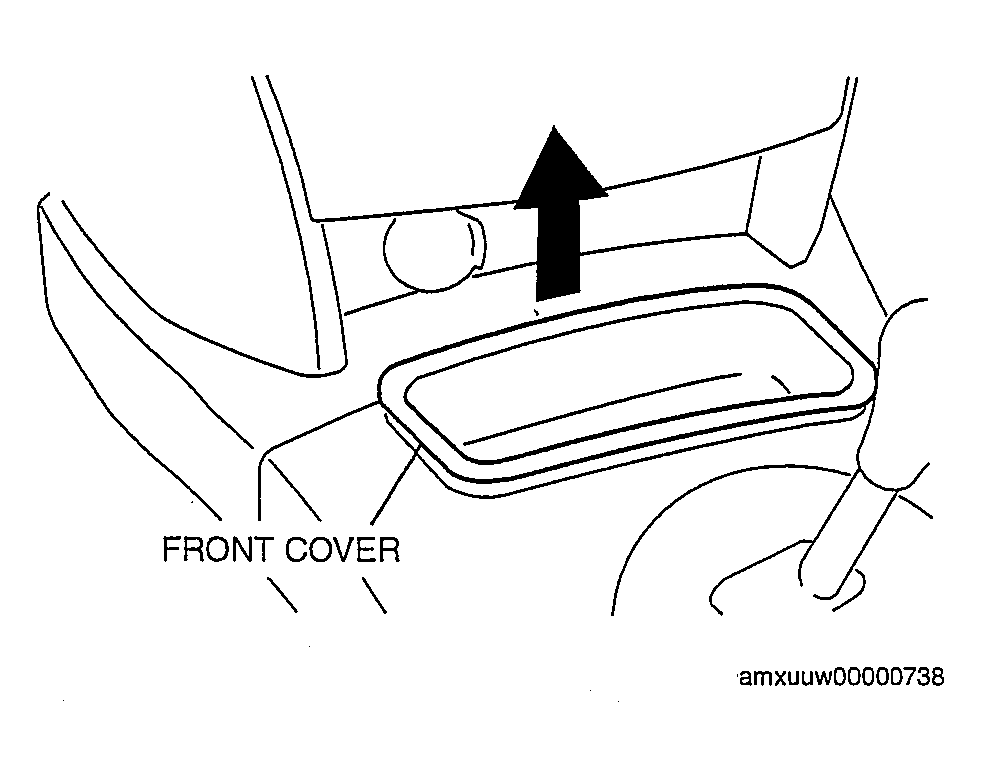

Fig 2: Removing Front Cover
Courtesy of MAZDA MOTORS CORP
