Column Cover Removal/Installation

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tab A, then remove the upper column cover.
  2. Remove the screws, then remove the lower column cover.
  3. Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION .)
  4. Install in the reverse order of removal.

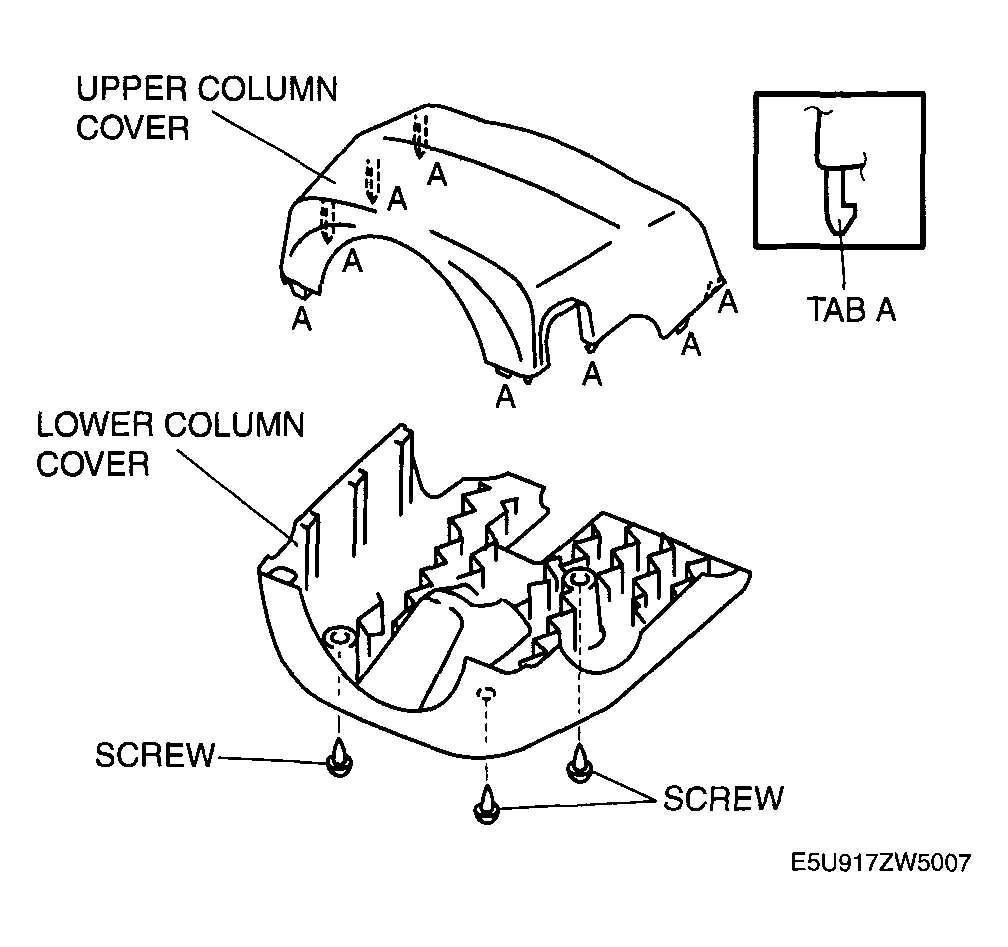

    Fig 1: Removing Upper & Lower Column Cover
    G04323634Courtesy of MAZDA MOTORS CORP.
