Operating Order

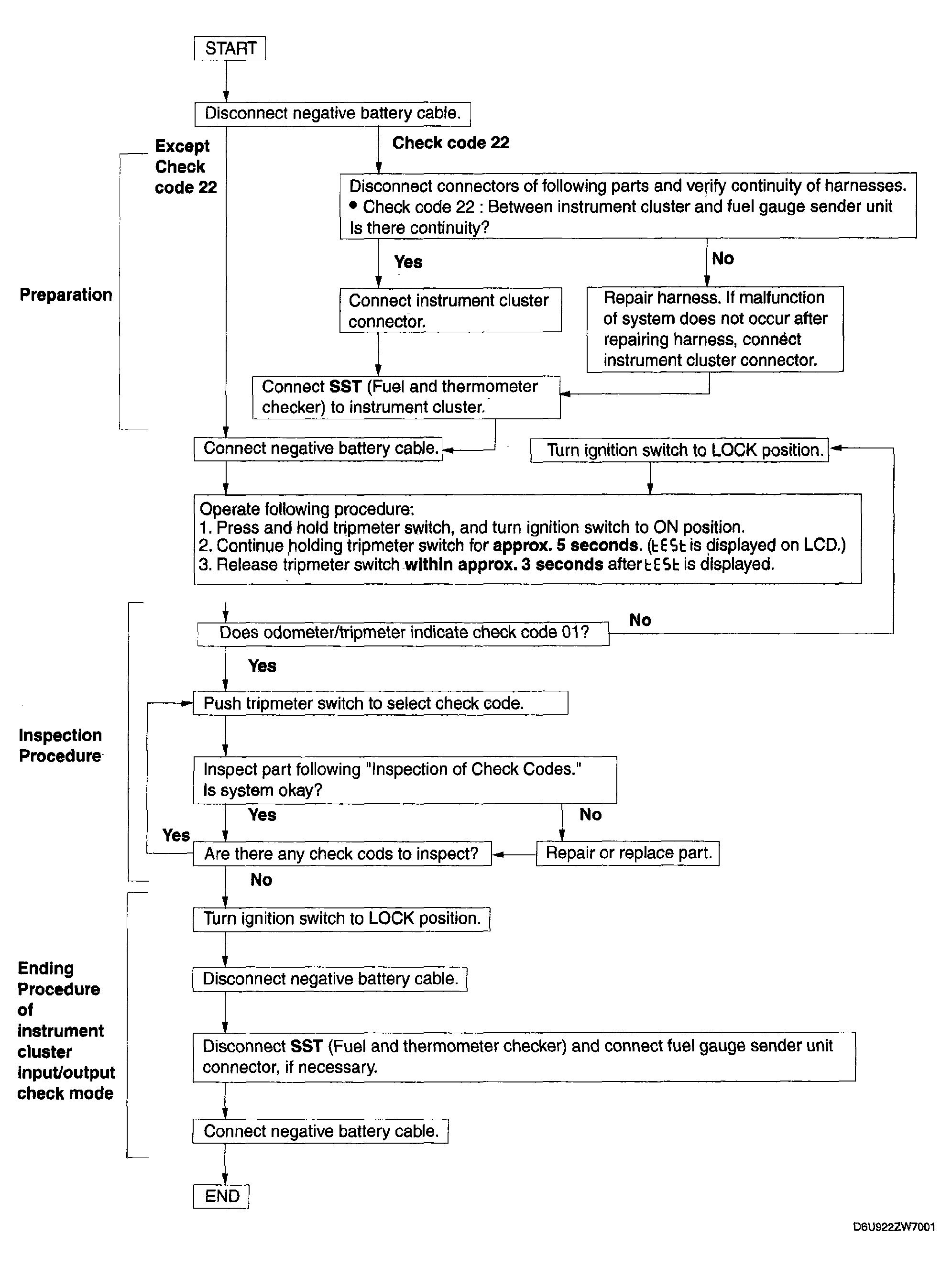

Fig 1: Instrument Cluster Operating Order Chart

G04327727

Courtesy of MAZDA MOTORS CORP.
