Symptom Troubleshooting (Power Window System)
>>
Power Window System Wiring Diagram
>>
Power Window Subswitch
Power Window Subswitch

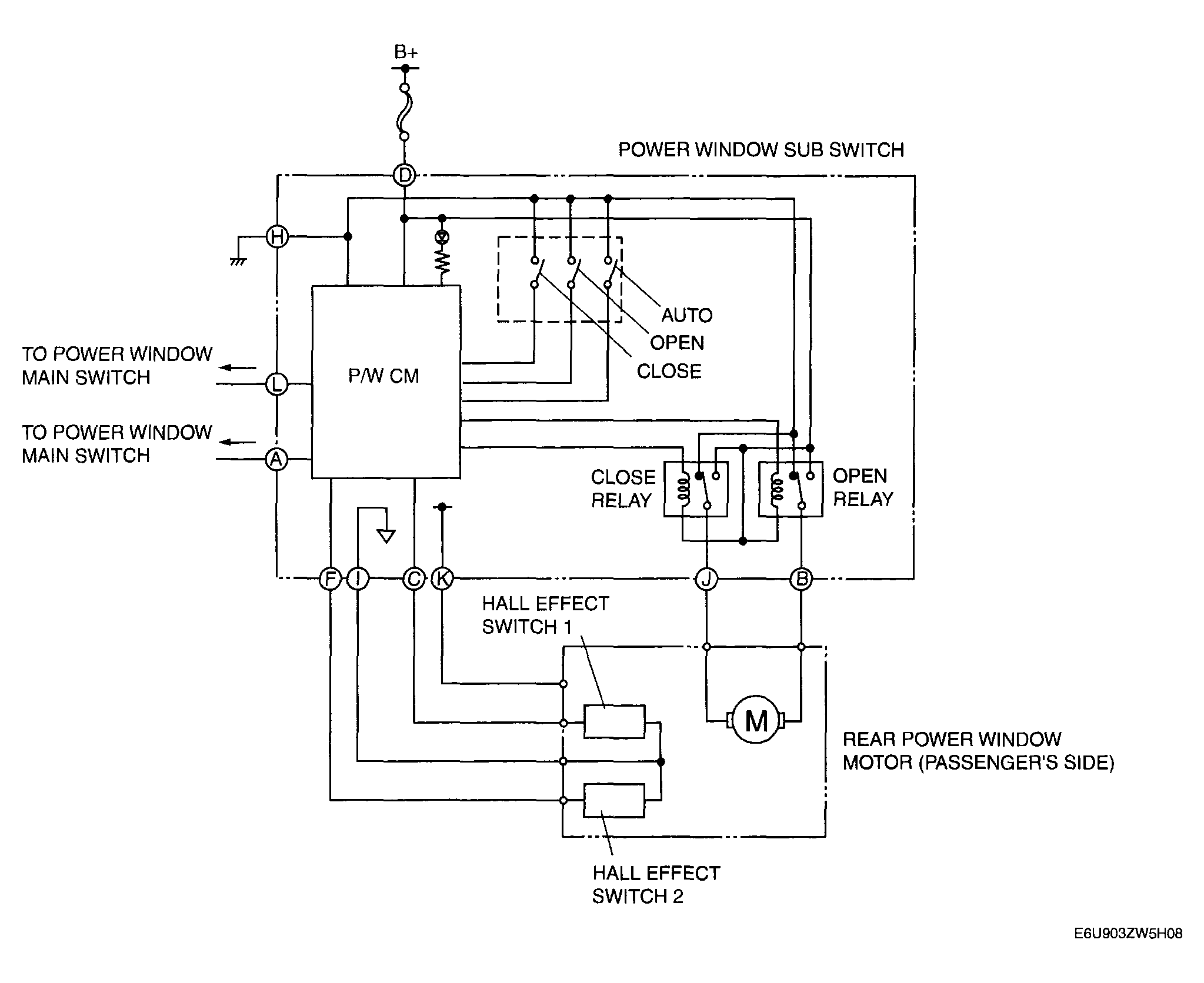

Fig 1: Power Window Subswitch - Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
