6 s, 4D Hatchback, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Symptom Troubleshooting (Advanced Keyless System)
>>
Keyless Entry System Wiring Diagram [Advanced Keyless System]
Keyless Entry System Wiring Diagram [Advanced Keyless System]

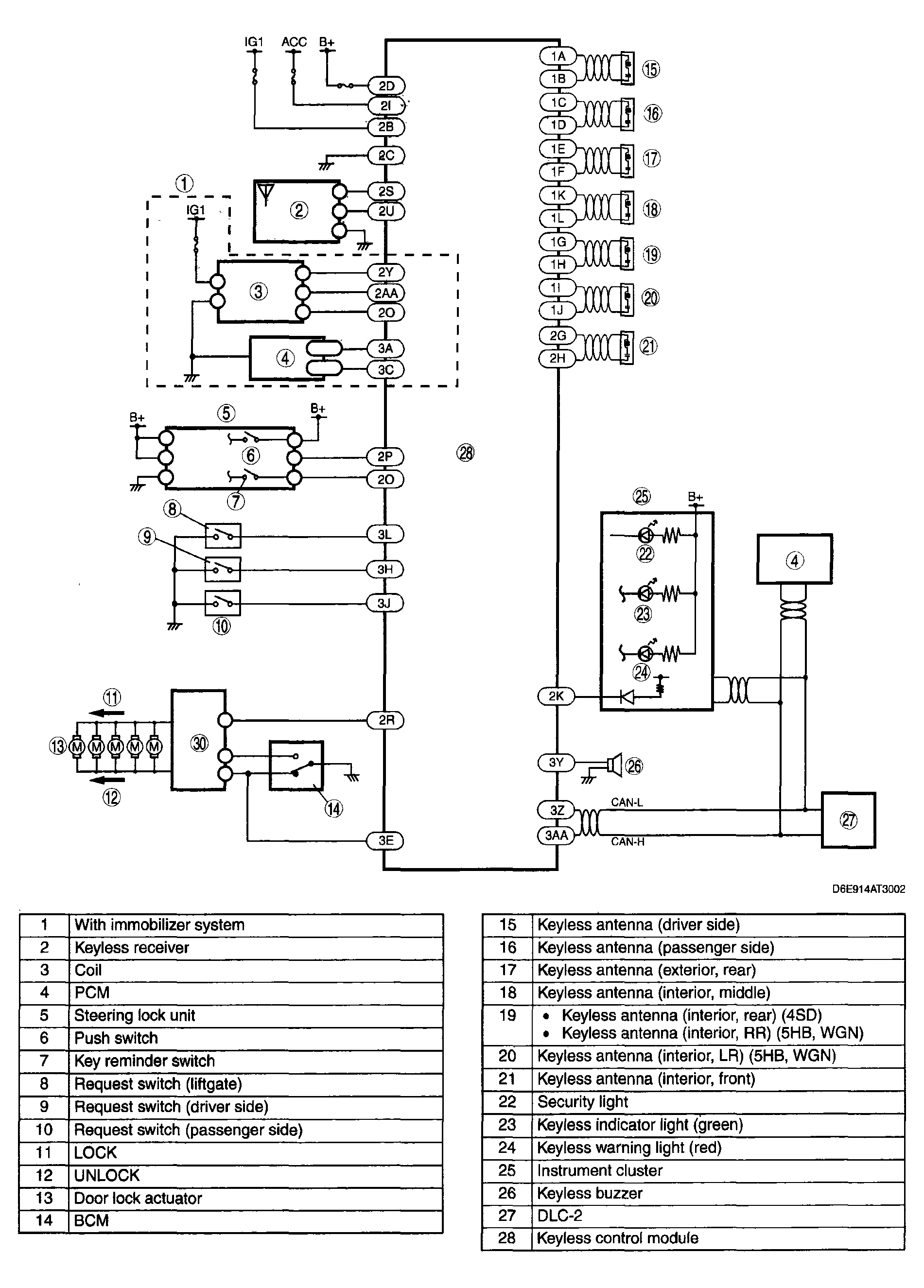

Fig 1: Keyless Entry System - Wiring Diagram (Advanced Keyless System)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
