Immobilizer System Location Index [With Advanced Keyless System]
Immobilizer System Location Index [With Advanced Keyless System]

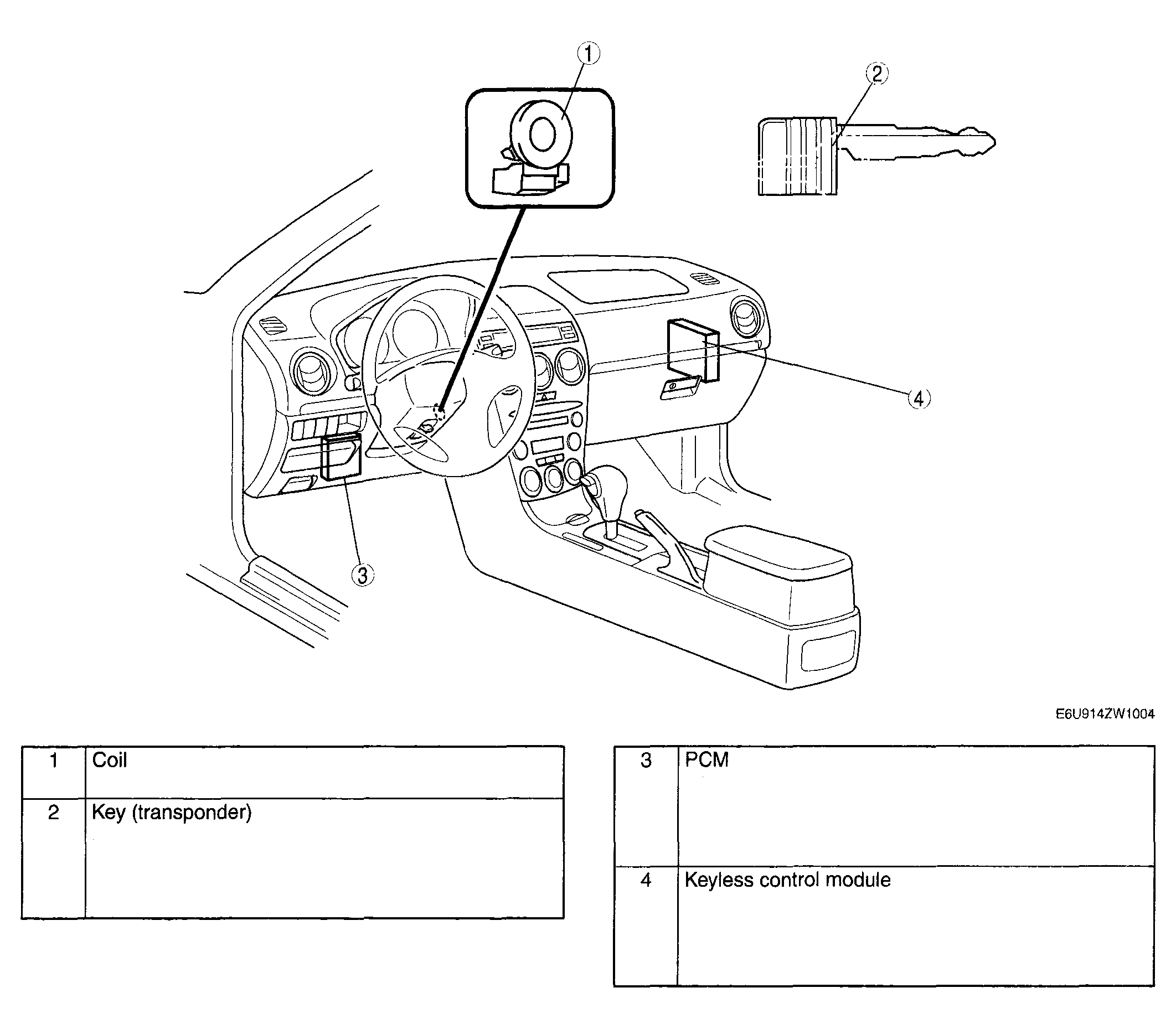

Fig 1: Identifying Immobilizer System Components [With Advanced Keyless System]
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
