Transmission/Transaxle SST

Mazda SST number
Global SST number
Example

Fig 1: Identifying SST
Courtesy of MAZDA MOTORS CORP.

SST DESCRIPTION

1:49 0259 770B
2:-
Flare nut wrench

G04326495

Courtesy of MAZDA MOTORS CORP.

1:49 E011 1A0
2:-
Ring gear brake set

G04326496

Courtesy of MAZDA MOTORS CORP.

1:49 SE01 310A
2:-
Clutch disc centering tool

G04326497

Courtesy of MAZDA MOTORS CORP.

1:49 1285 071
2:-
Bearing puller

G04326498

Courtesy of MAZDA MOTORS CORP.

1:49 UN30 8157
2:308-157
Pilot bearing installer

G04326499

Courtesy of MAZDA MOTORS CORP.

1:49 UN20 5153
2:205-153
Handle

G04326500

Courtesy of MAZDA MOTORS CORP.

1:49C017 5A0⁽¹⁾
2:-
Engine support

G04326501

Courtesy of MAZDA MOTORS CORP.

1:49 G030 795
2:-
Oil seal installer

G04326502

Courtesy of MAZDA MOTORS CORP.

1:49 UN30 3050
2:303-050
Engine lifting bracket

G04326503

Courtesy of MAZDA MOTORS CORP.

1:49 U027 003
2:-
Oil seal installer

G04326504

Courtesy of MAZDA MOTORS CORP.

1:49 G030 797
2:-
Handle

G04326505

Courtesy of MAZDA MOTORS CORP.

1:49 0378 400C
2:-
Oil pressure gauge set

G04326506

Courtesy of MAZDA MOTORS CORP.

1:49 B019 901B
2:-
Oil pressure gauge

G04326507

Courtesy of MAZDA MOTORS CORP.

1:49 H019 002
2:-
Adapter

G04326508

Courtesy of MAZDA MOTORS CORP.

1:49 HD64
406A
2:-
Adapter

G04326509

Courtesy of MAZDA MOTORS CORP.

1:49 F026 102
2:-
Bearing replacer

G04326510

Courtesy of MAZDA MOTORS CORP.

1.49 H028 202
2:-
Block L

G04326511

Courtesy of MAZDA MOTORS CORP.

1:19 027 009
2:-
Attachment for 68&77 (Part of 49 F027 0A1)

G04326512

Courtesy of MAZDA MOTORS CORP.

1: 49 F027 003
2:-
Handle

G04326513

Courtesy of MAZDA MOTORS CORP.

1:49 W027 001
2:-
Body

G04326514

Courtesy of MAZDA MOTORS CORP.

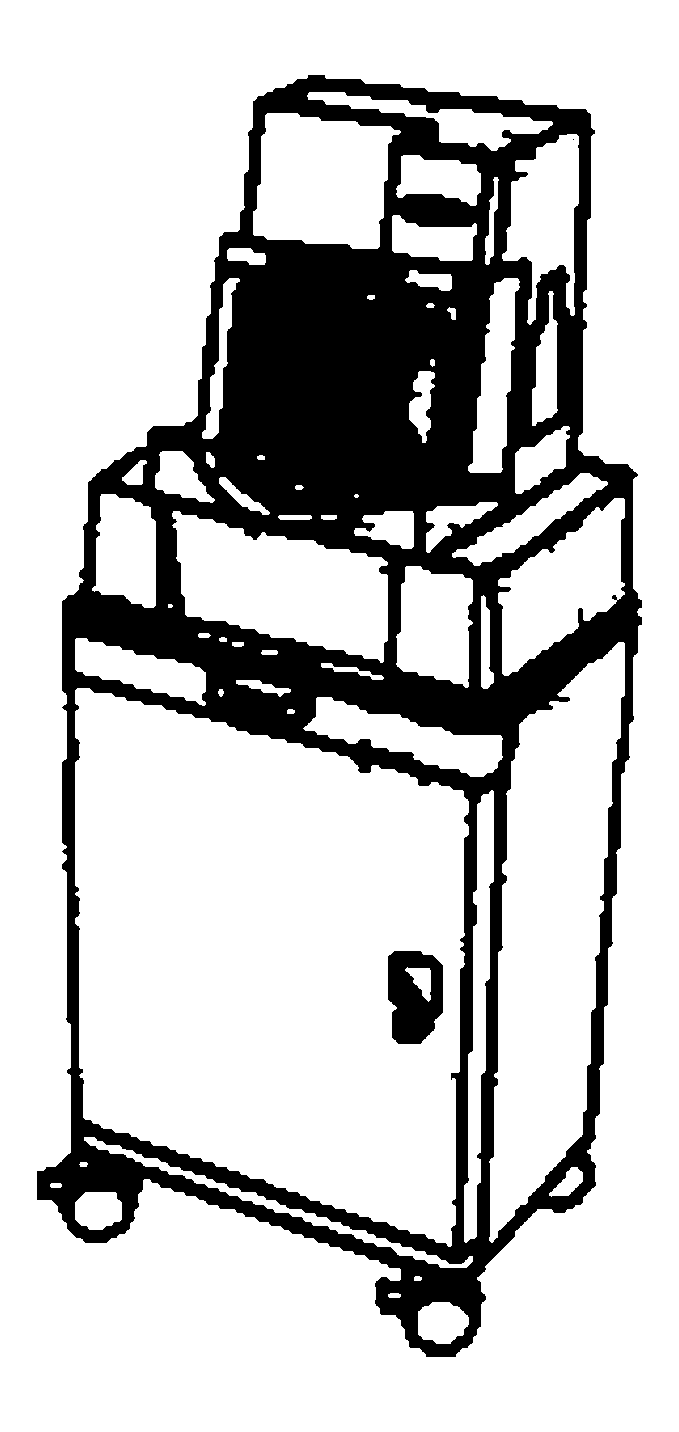

1:-
2: 418-FS475
WDS

G04326515

Courtesy of MAZDA MOTORS CORP.

⁽¹⁾	The SST (49 E017 5A0) can be used in place of the SST (49 C017 5A0).
