Tie Rod Disassembly Note

  1. Unclamp the washer.
  2. Remove the tie rod.

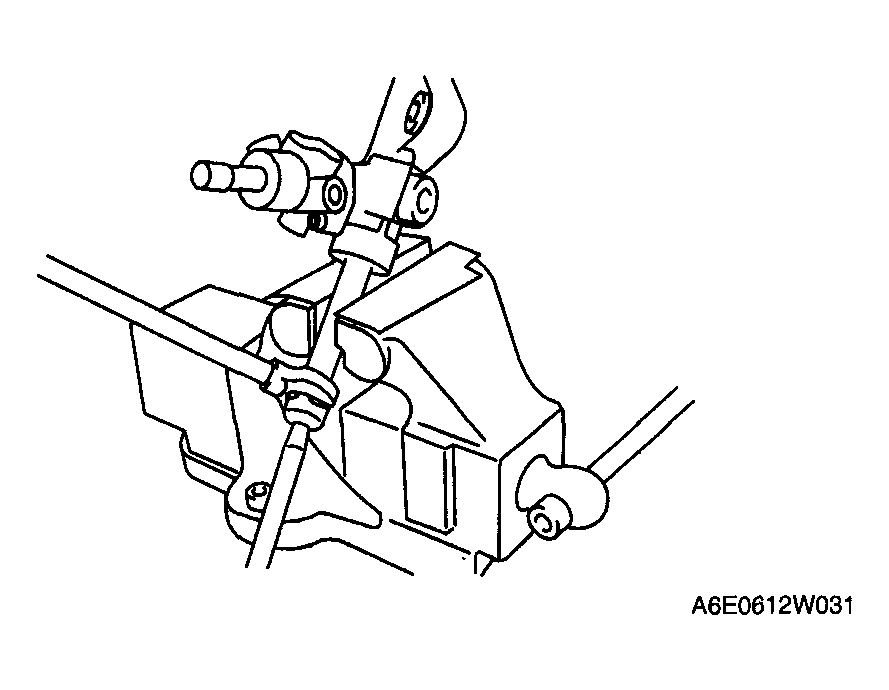

    Fig 1: Removing Tie Rod
    G04326541Courtesy of MAZDA MOTORS CORP.
