California Emission Regulation Applicable ATX Model

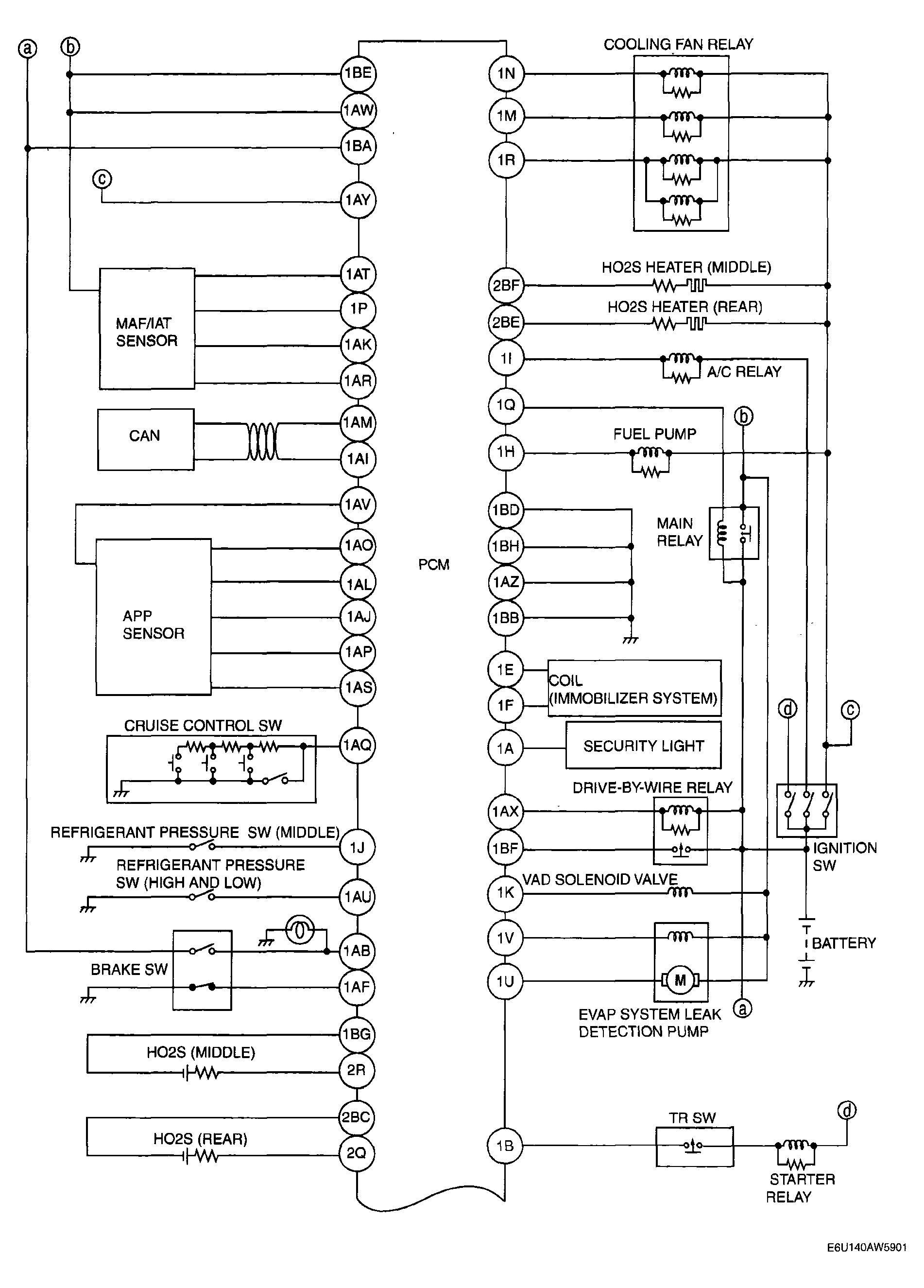

Fig 1: Symptom Troubleshooting Wiring Diagram (L3) - California Emission Regulation Applicable ATX Model (1 Of 2)
G04324226Courtesy of MAZDA MOTORS CORP.

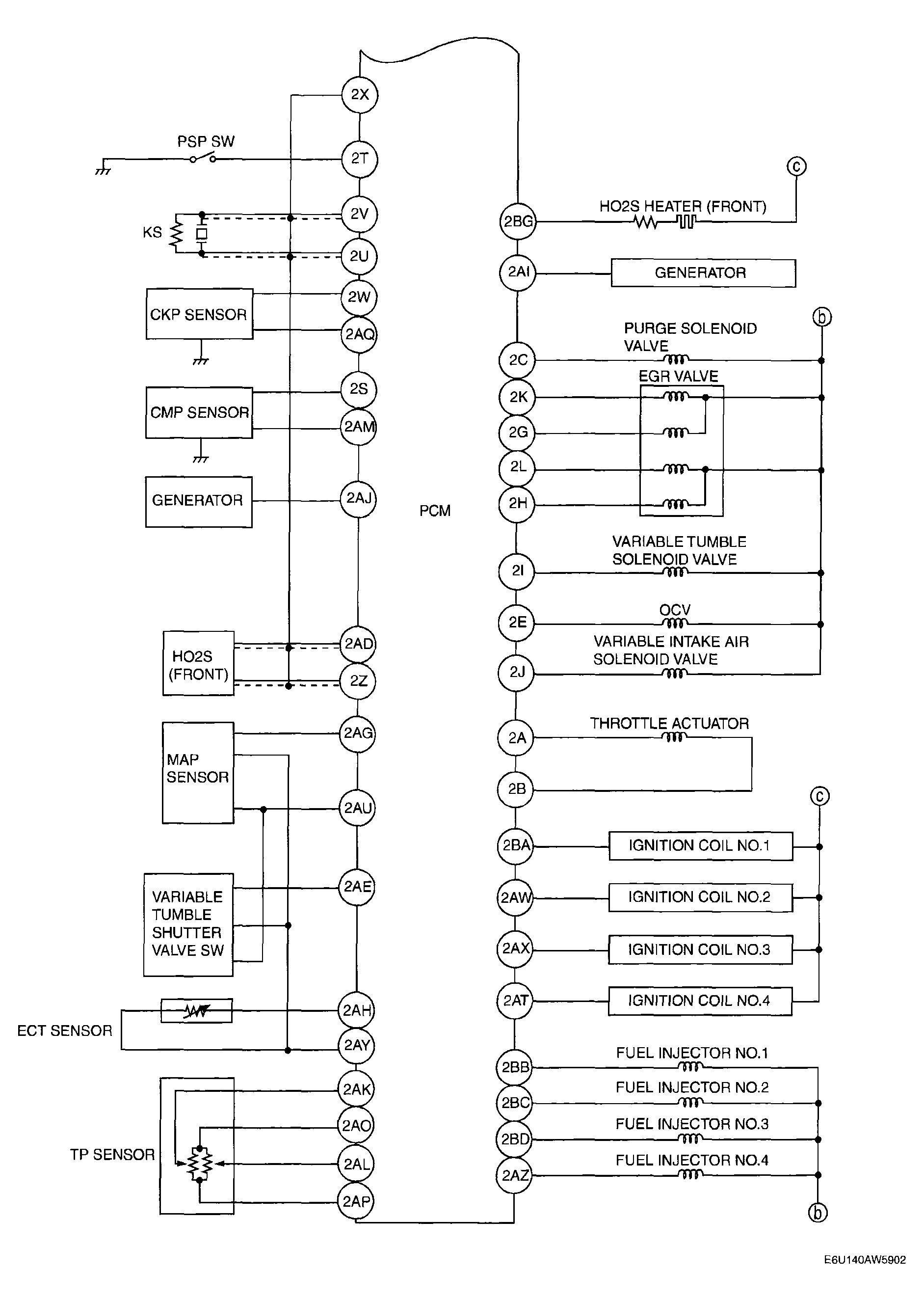

Fig 2: Symptom Troubleshooting Wiring Diagram (L3) - California Emission Regulation Applicable ATX Model (2 Of 2)
G04324227Courtesy of MAZDA MOTORS CORP.
