Ignition Coil Removal/Installation: AJ
- Disconnect the negative battery cable.
- LH: Remove the plug hole plate. (See
TIMING CHAIN REMOVAL/INSTALLATION
).
RH: Remove the dynamic chamber. (See INTAKE AIR SYSTEM REMOVAL/INSTALLATION ).

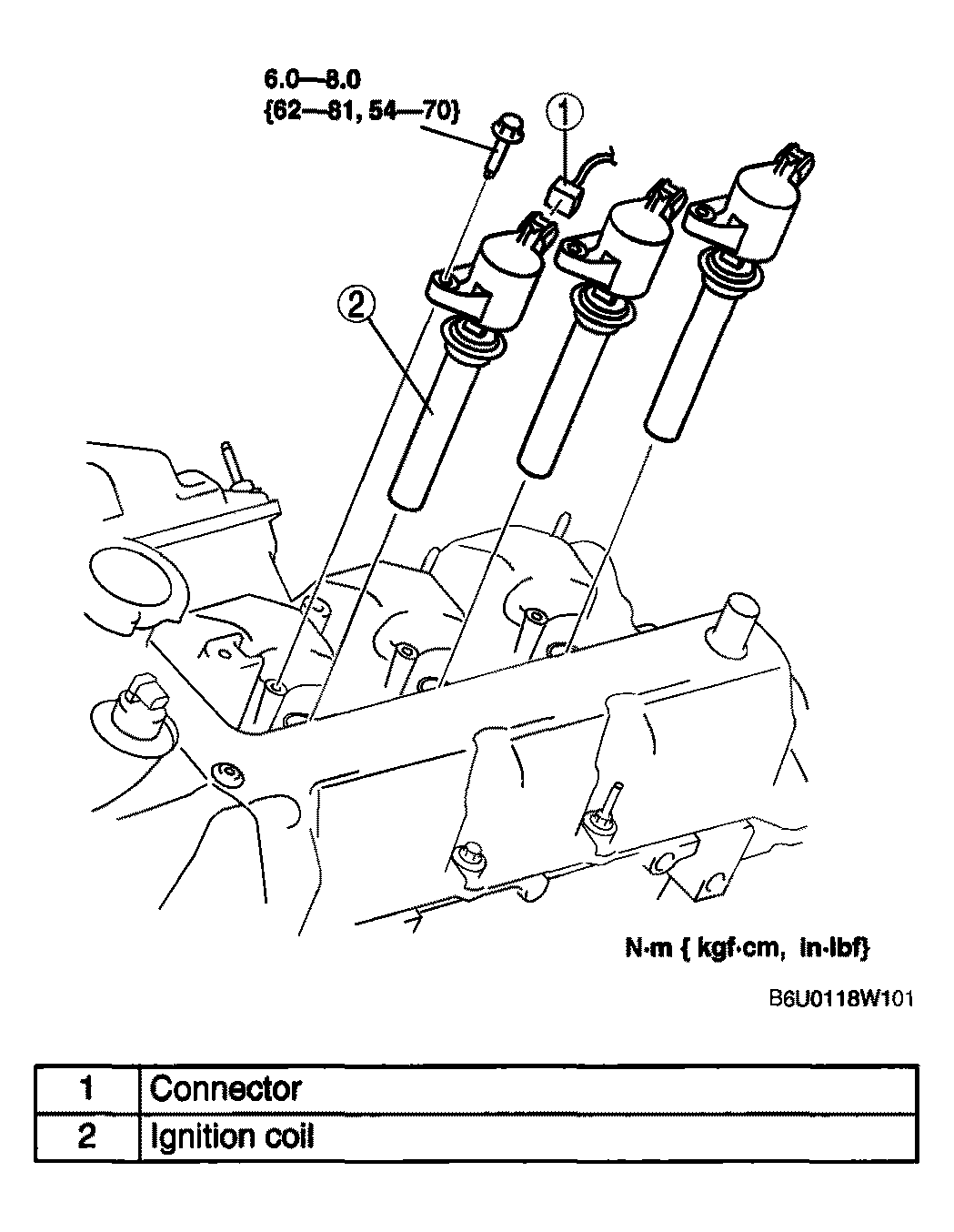

- Remove in the order indicated in the table.
CAUTION:
- Apply small amount of the specified dielectric grease to the inside of the ignition coils, then install the ignition coils to the spark plugs.- Specified grease: Motorcraft XG-3A
- Install in the reverse order of removal.
