Fuel Injector Inspection [AJ]: Atomization

  1. Inspect atomization pattern.
    • If the atomization is faulty, replace the fuel injector.

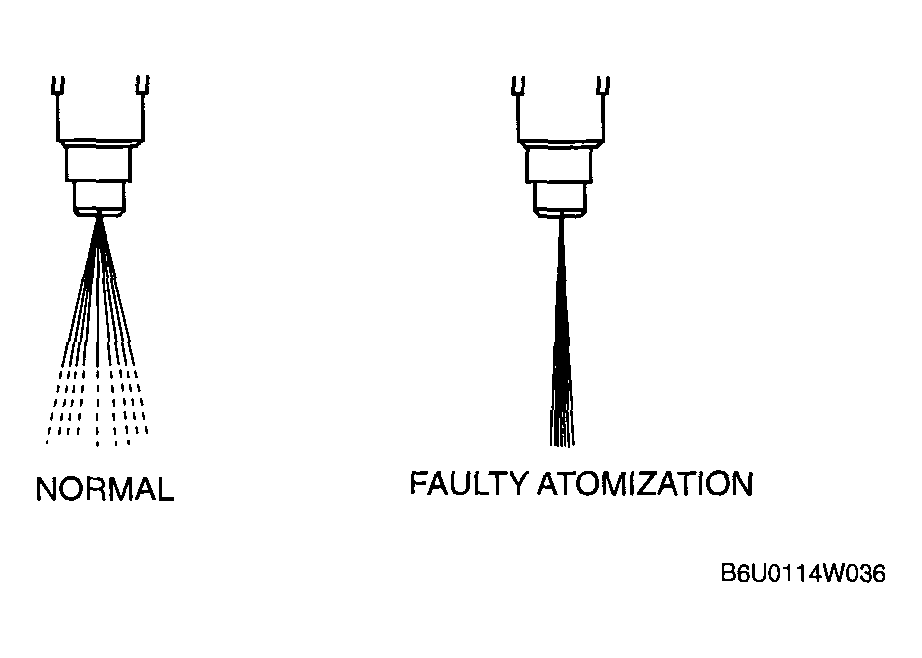

      Fig 1: Inspecting Fuel Injector Atomization Pattern
      G04324850Courtesy of MAZDA MOTORS CORP.
