Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
CMP sensor signal
>>
Vehicle condition
Vehicle condition
Idle after warm up (no load, P/S off, A/C off)

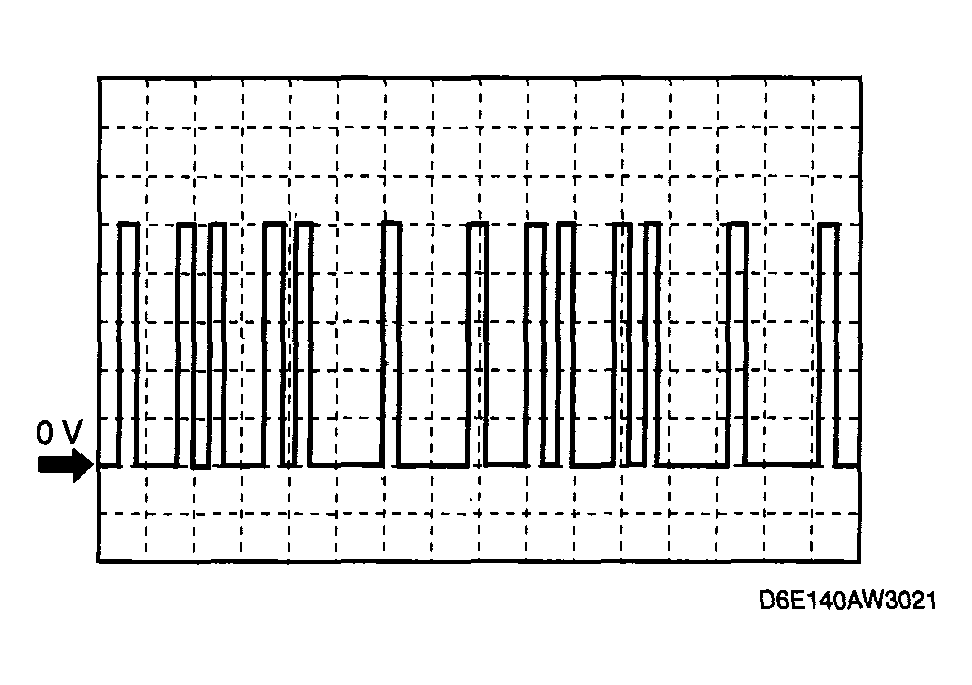

Fig 1: Identifying CMP Sensor Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
