6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (L3)
>>
Pcm Inspection
>>
Inspection Using An Oscilloscope (Reference)
>>
CKP sensor signal
>>
Vehicle condition
Vehicle condition
Idle after warm up (no load, P/S off, A/C off)

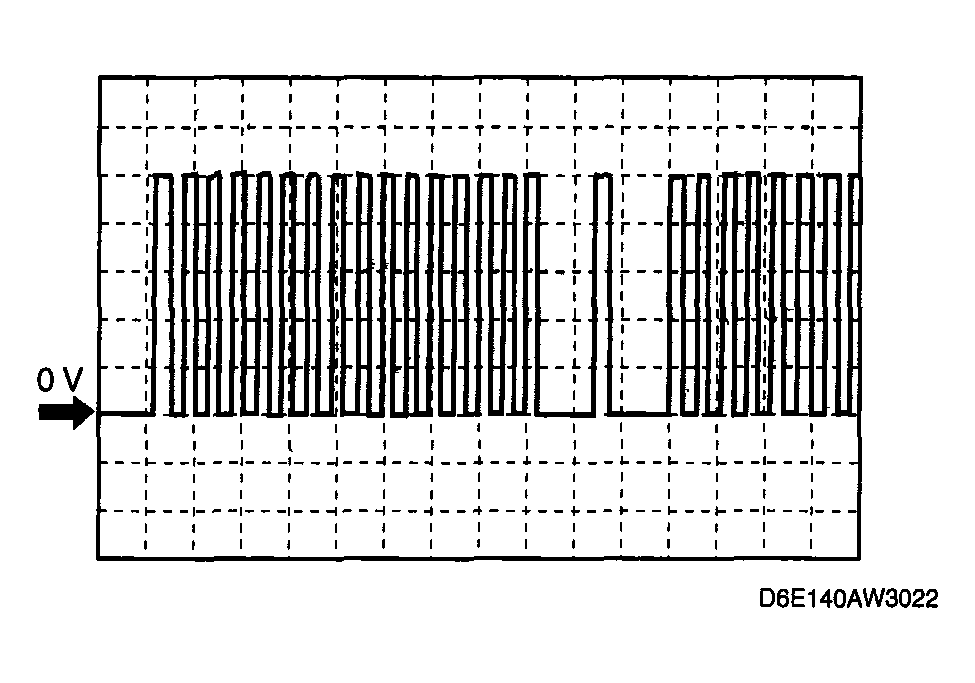

Fig 1: Identifying CKP Sensor Signal Waveform
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
