Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

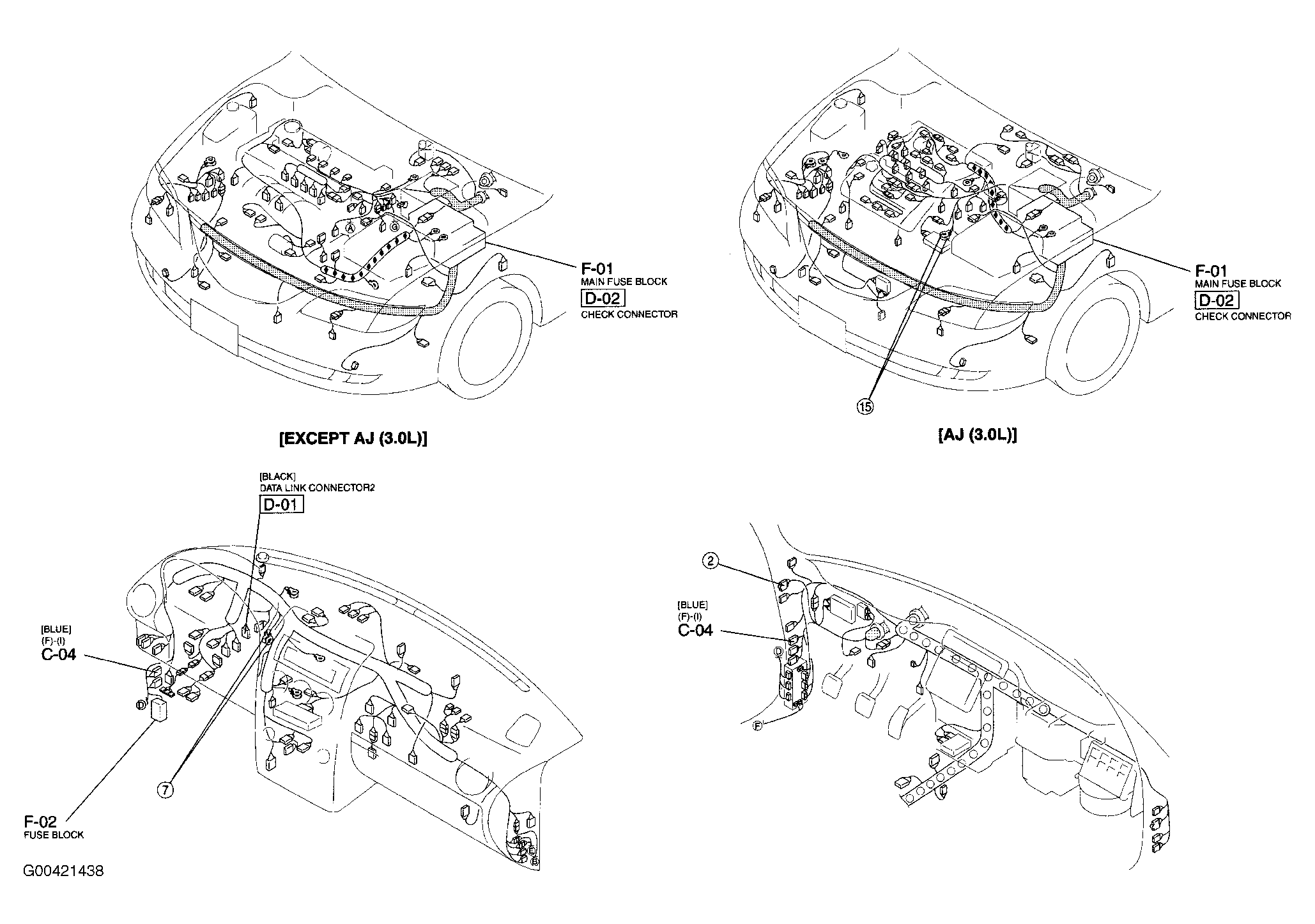

Fuse Block Under left side of dash. See Figure.
Main Fuse Block (Main Fuse & Relay Box) On left front inner fender panel. See Figure.
