Locknut Installation Note

  1. Install a new locknut and stake it as shown.

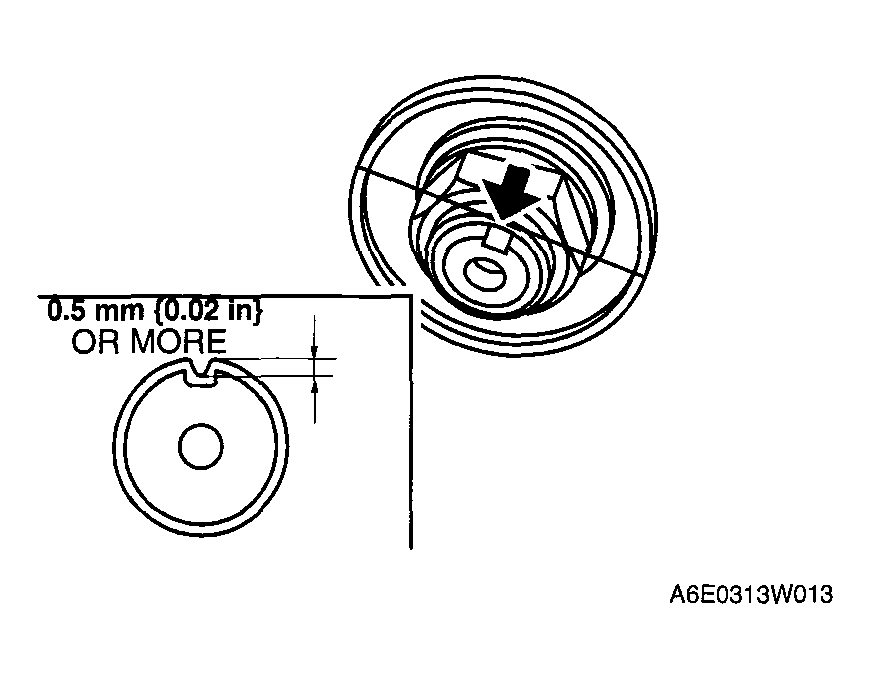

    Fig 1: Installing Locknut
    G04325573Courtesy of MAZDA MOTORS CORP.
