Symptom Troubleshooting [DSC]

Verify the symptoms, and perform troubleshooting according to the appropriate number.

SYMPTOM TROUBLESHOOTING [DSC] CHART

No.

Symptom

Any of the following lights do not illuminate with ignition switch on.

ABS warning light
BRAKE system warning light
DSC indicator light
TCS OFF light

Any of the following lights stay on:

ABS warning light.
BRAKE system warning light
DSC indicator light
TCS OFF light

There is a malfunction in the system even though ABS warning light, BRAKE system warning light, DSC indicator light and TCS OFF light do not illuminate.

ABS or TCS⁽¹⁾ operates frequently.

TCS does not work correctly.

DSC⁽²⁾ operates frequently.

DSC does not work correctly.

DSC indicator light flashes (when neither the TCS nor the DSC are operating).

⁽¹⁾	DSC system contains traction control function, DSC indicator light goes on and off while DSC operates.

⁽²⁾	DSC indicator light goes on and off while DSC operates.

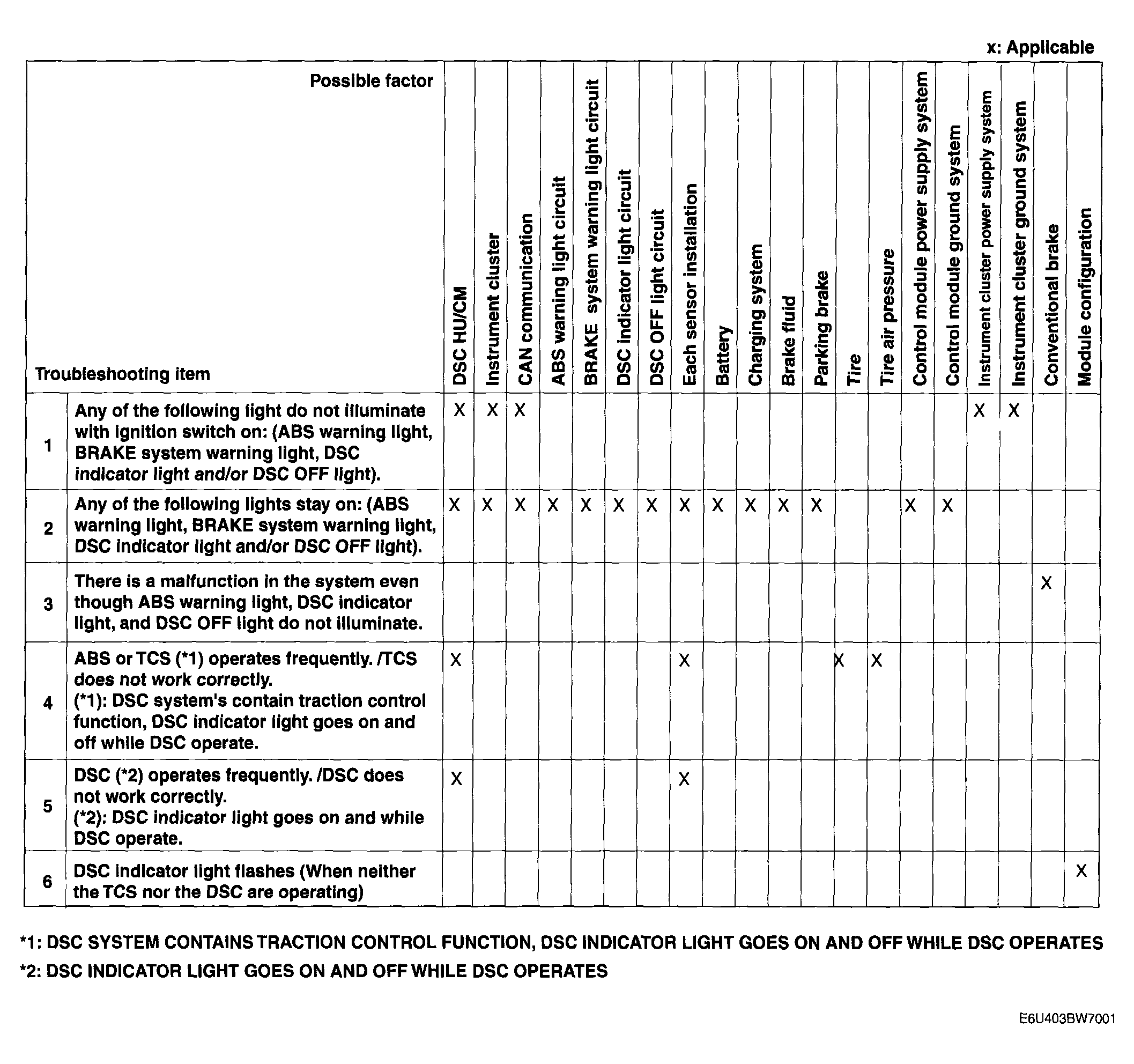

Fig 1: Symptom Troubleshooting Table

Courtesy of MAZDA MOTORS CORP.
