DSC System Wiring Diagram

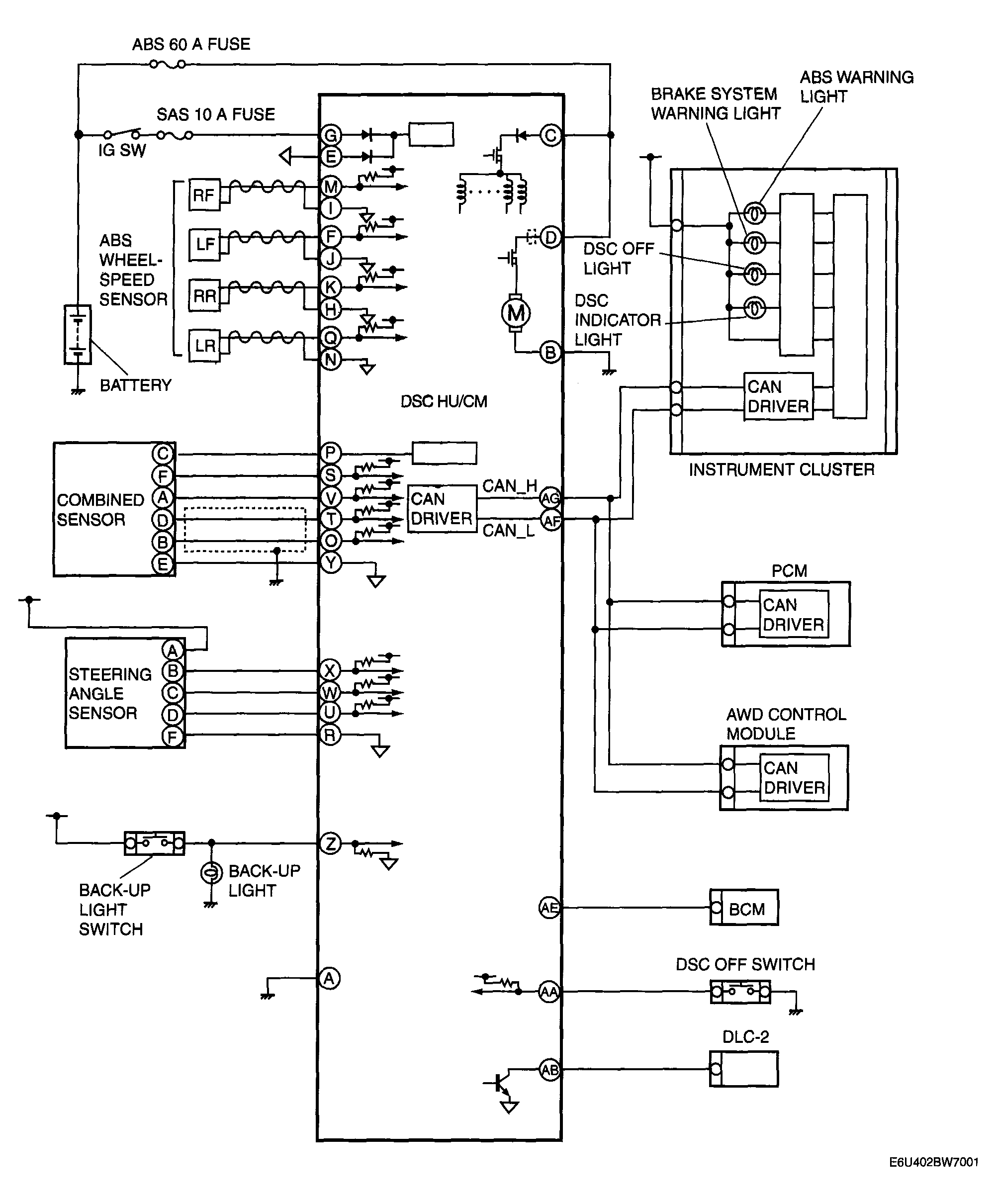

Fig 1: DSC System Wiring Diagram

G04325860

Courtesy of MAZDA MOTORS CORP.
