DSC System Wiring Diagram

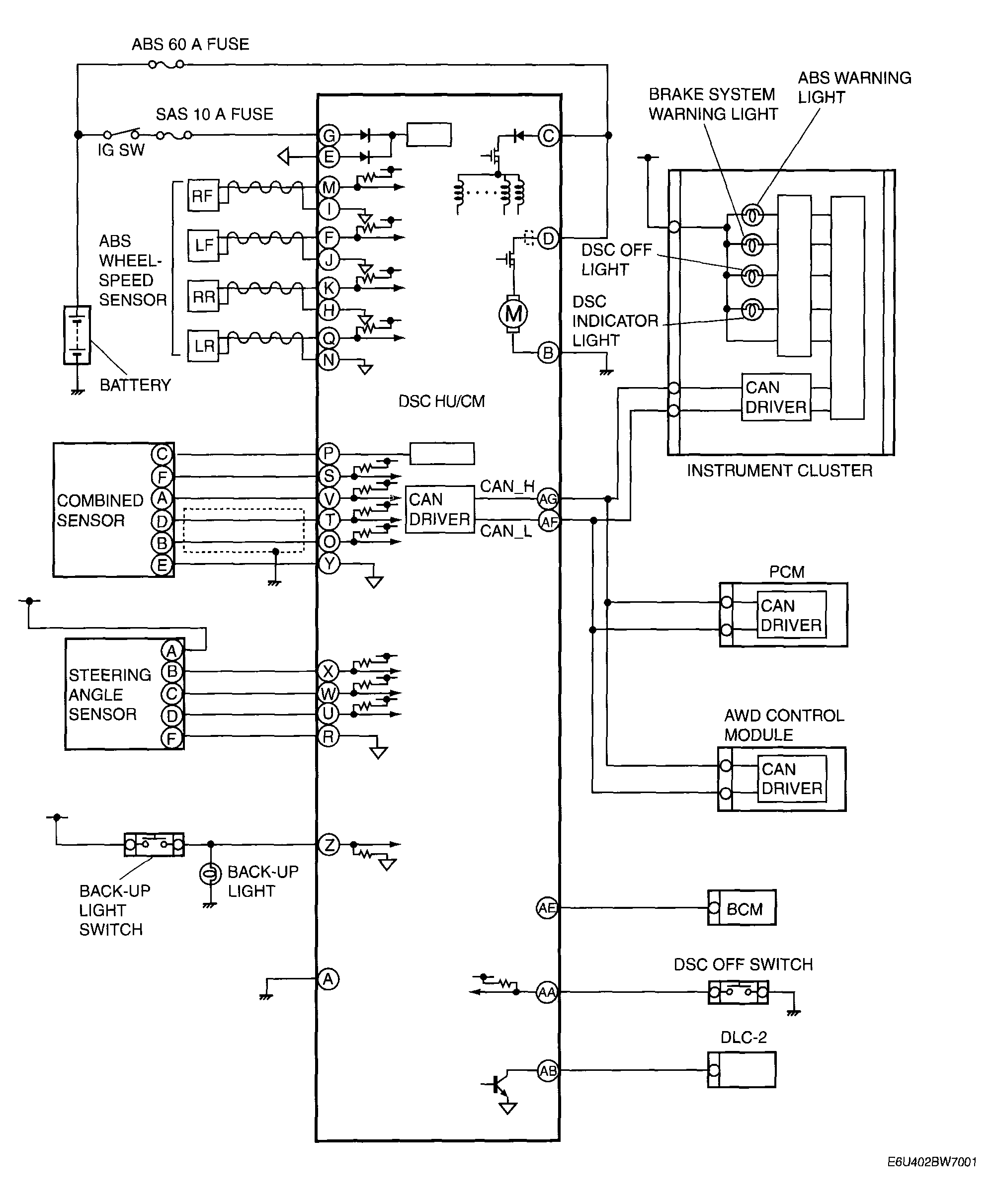

Fig 1: DSC System Wiring Diagram

G04325975

Courtesy of MAZDA MOTORS CORP.
