Power Outer Mirror Switch Inspection

  1. Inspect for continuity between the power outer mirror switch terminals.
    • If there is any malfunction, replace the power window main switch.

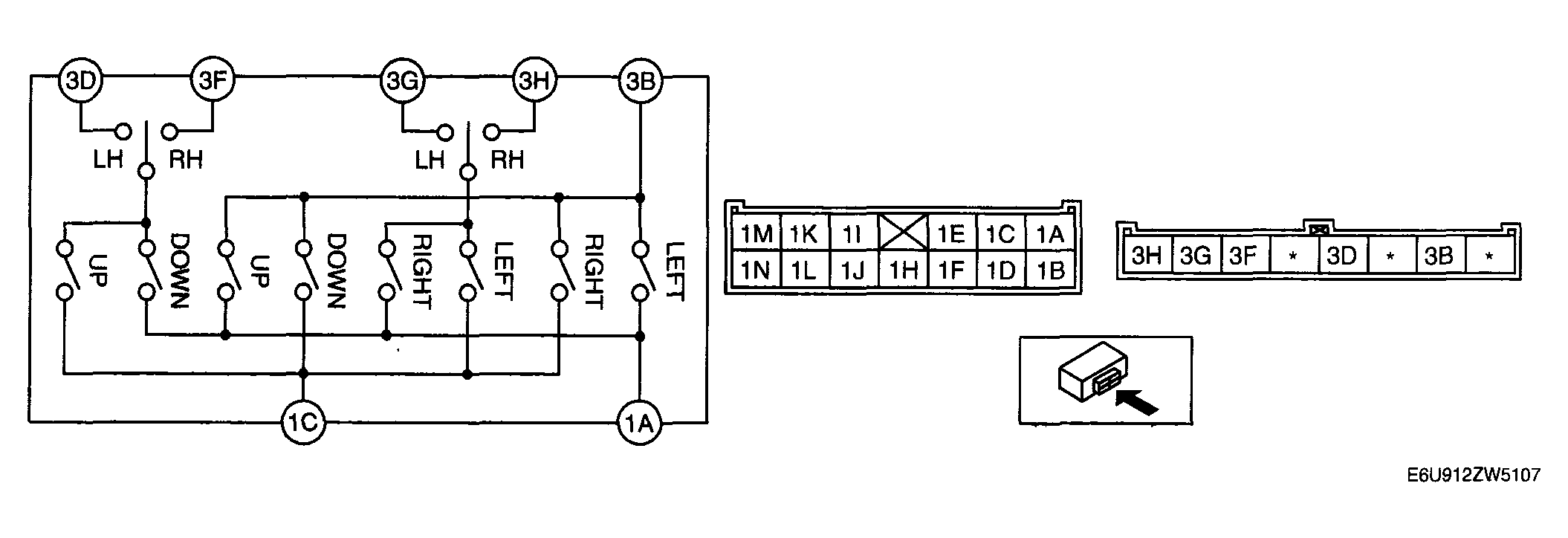

      Fig 1: Inspecting Continuity Between Power Outer Mirror Switch Terminals
      G04327232Courtesy of MAZDA MOTORS CORP.

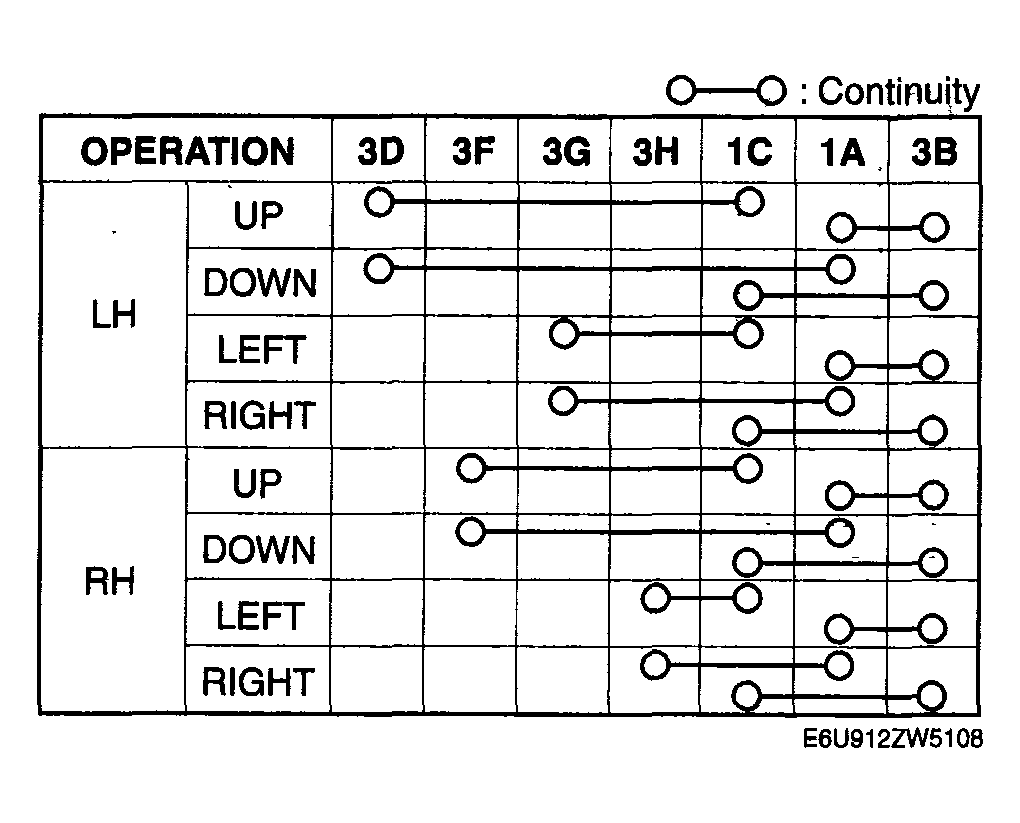

      Fig 2: Continuity Reference Chart
      G04327233Courtesy of MAZDA MOTORS CORP.
