Relay Location

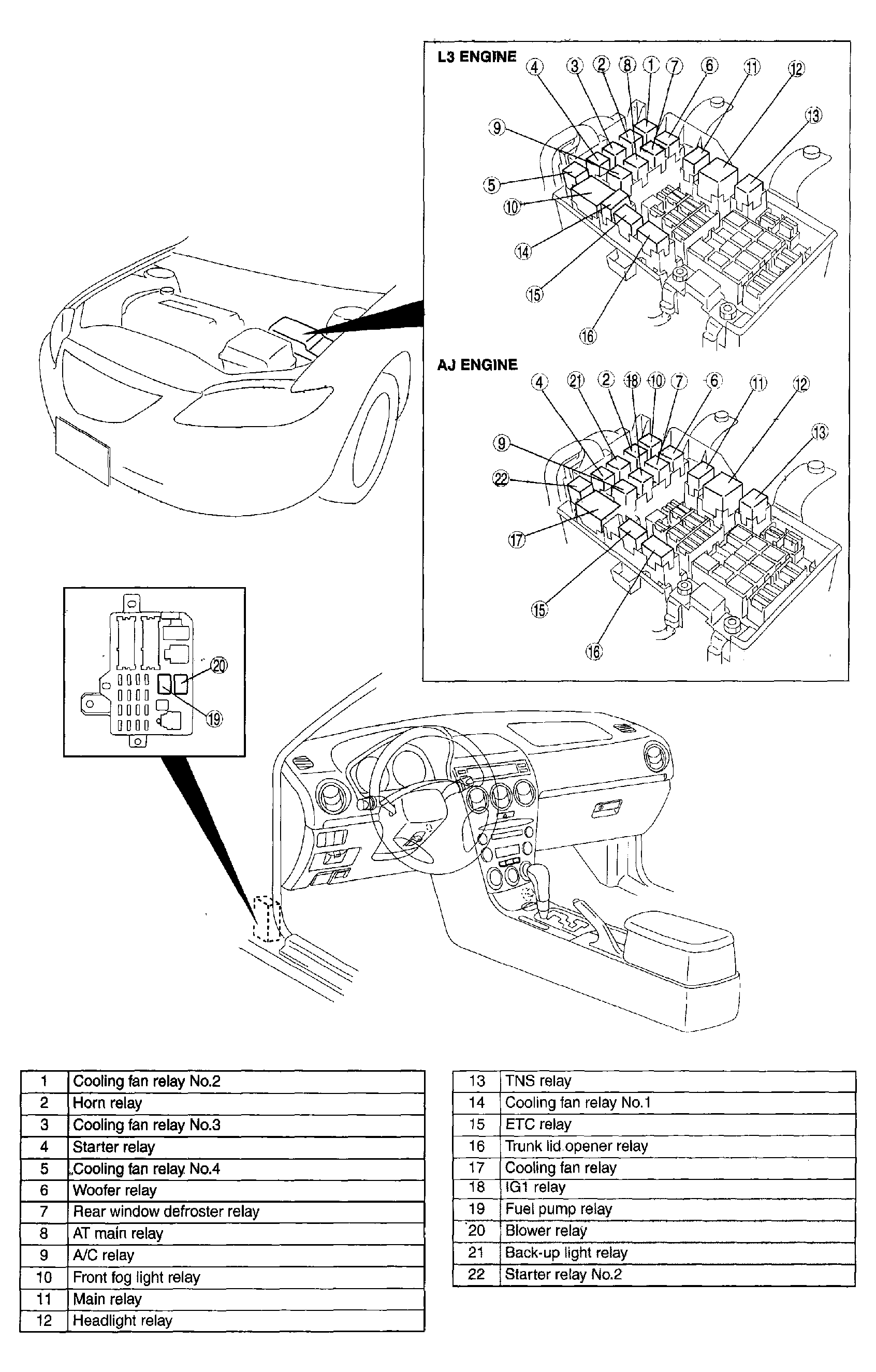

Fig 1: Identifying Relay Location
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
