Ignition Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

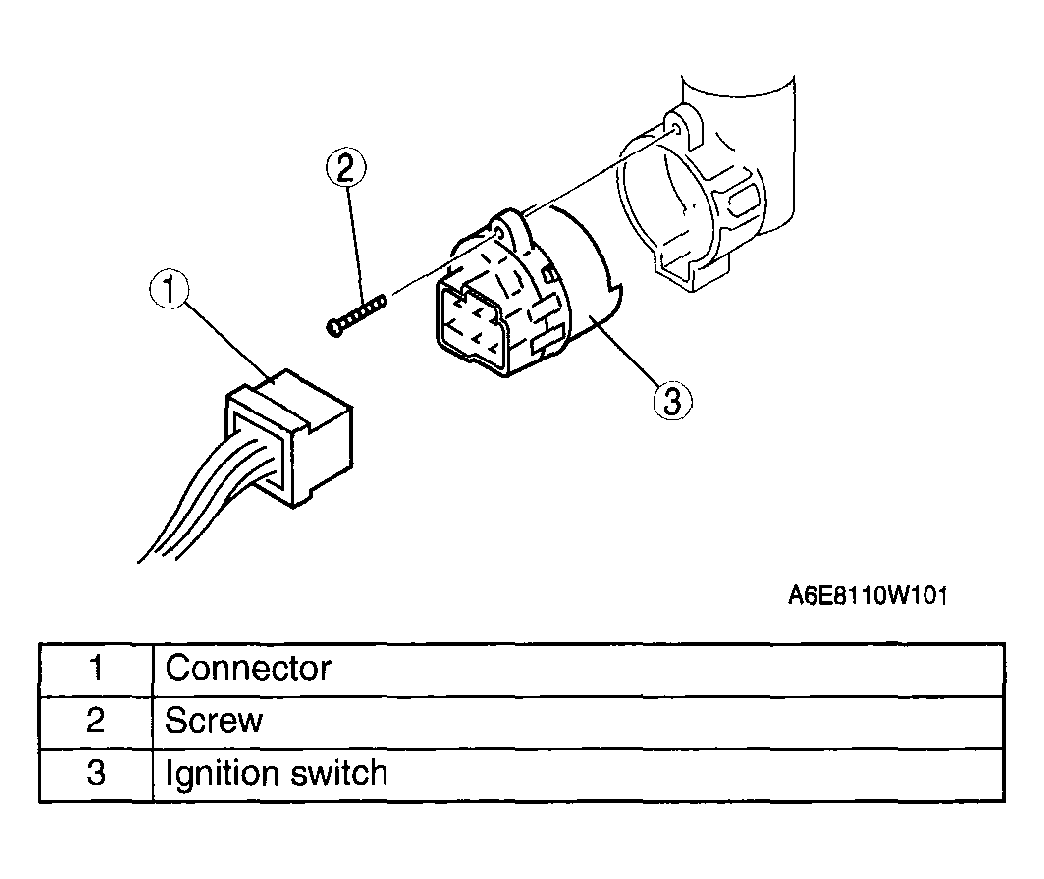

    Fig 1: View Of Ignition Switch & Components
    G04327706Courtesy of MAZDA MOTORS CORP.
