Home >> Mazda >> 2007 >> 6 i, 4D Hatchback, Standard >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Power Door Lock System And Keyless Entry System Location Index [With Keyless Entry System]

Power Door Lock System And Keyless Entry System Location Index [With Keyless Entry System]

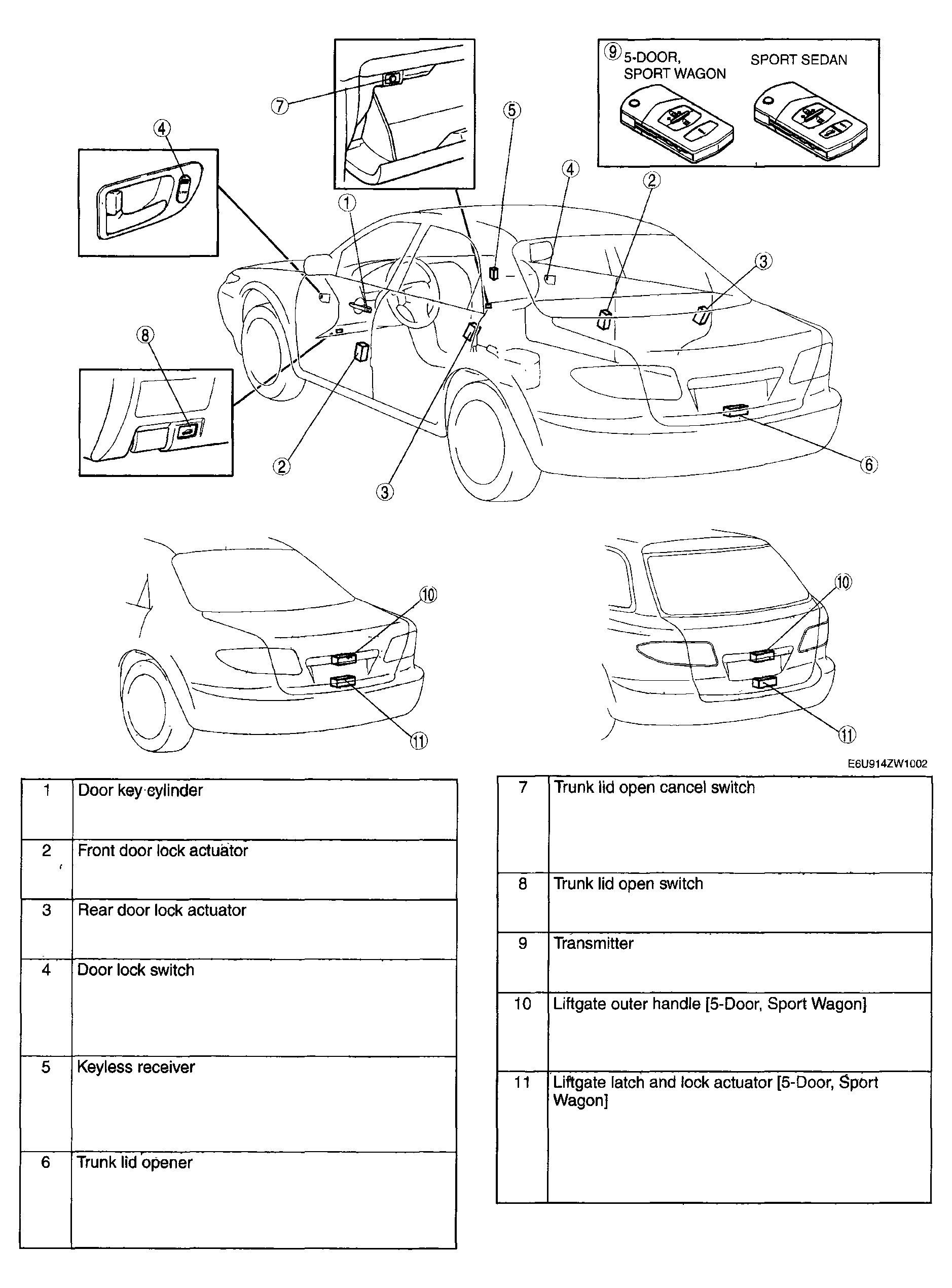

Fig 1: Identifying Power Door Lock System And Keyless Entry System Components [With Keyless Entry System]
G04327306Courtesy of MAZDA MOTORS CORP.
