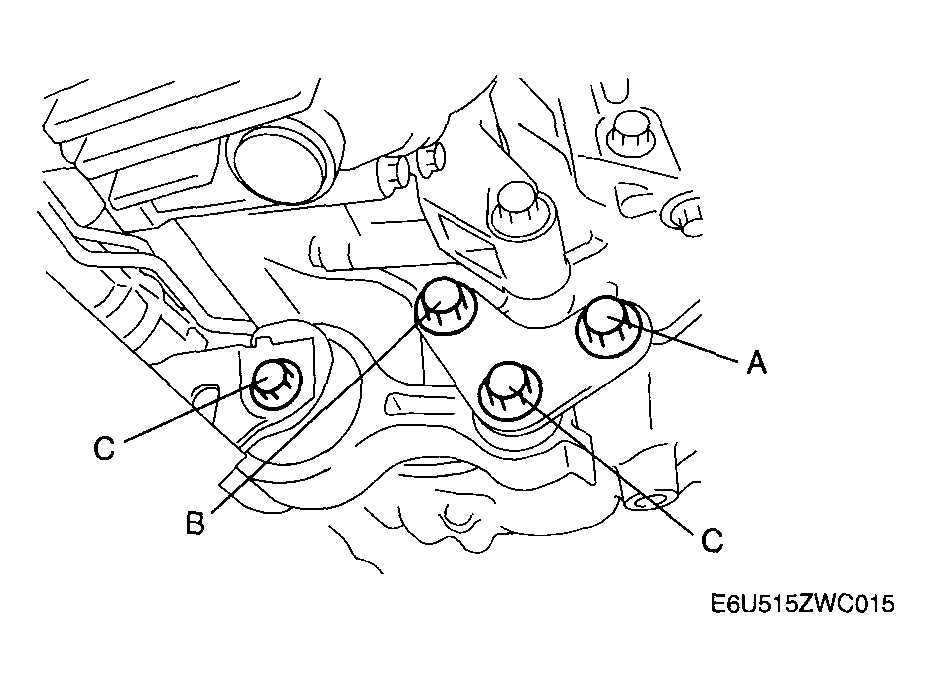

No. 1 Engine Mount Installation Note
- Align the hole of the No.1 engine mount rubber with the bolt hole of transaxle
- Hand-tighten the bolt A, B, and C.
- Tighten the bolts in order of A, B, C.
Tightening torque
93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
