Transfer Component Assembly

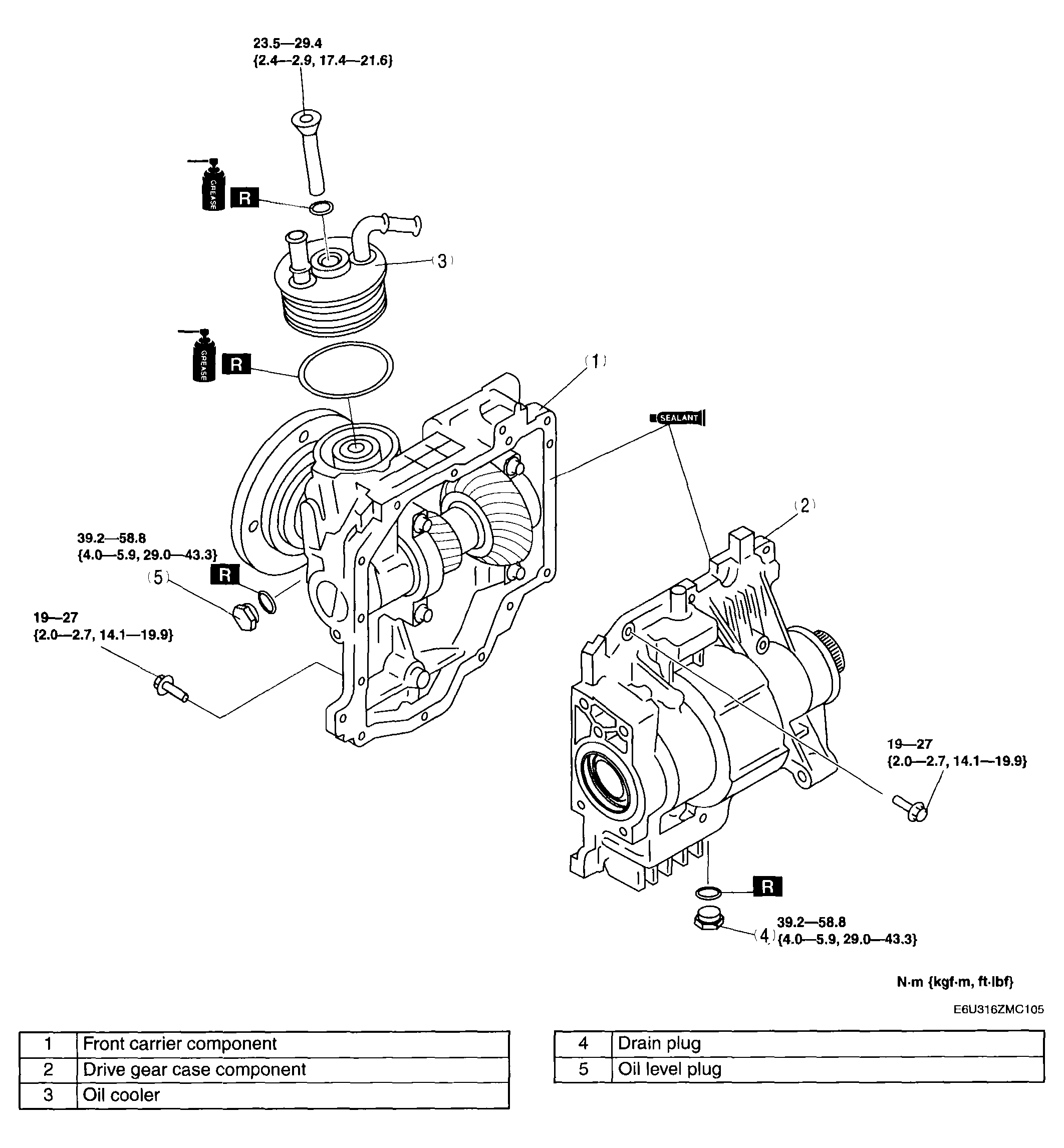

Fig 1: Transfer Components & Torque Specification

G04330862

Courtesy of MAZDA MOTORS CORP.
