Front Carrier Component Assembly

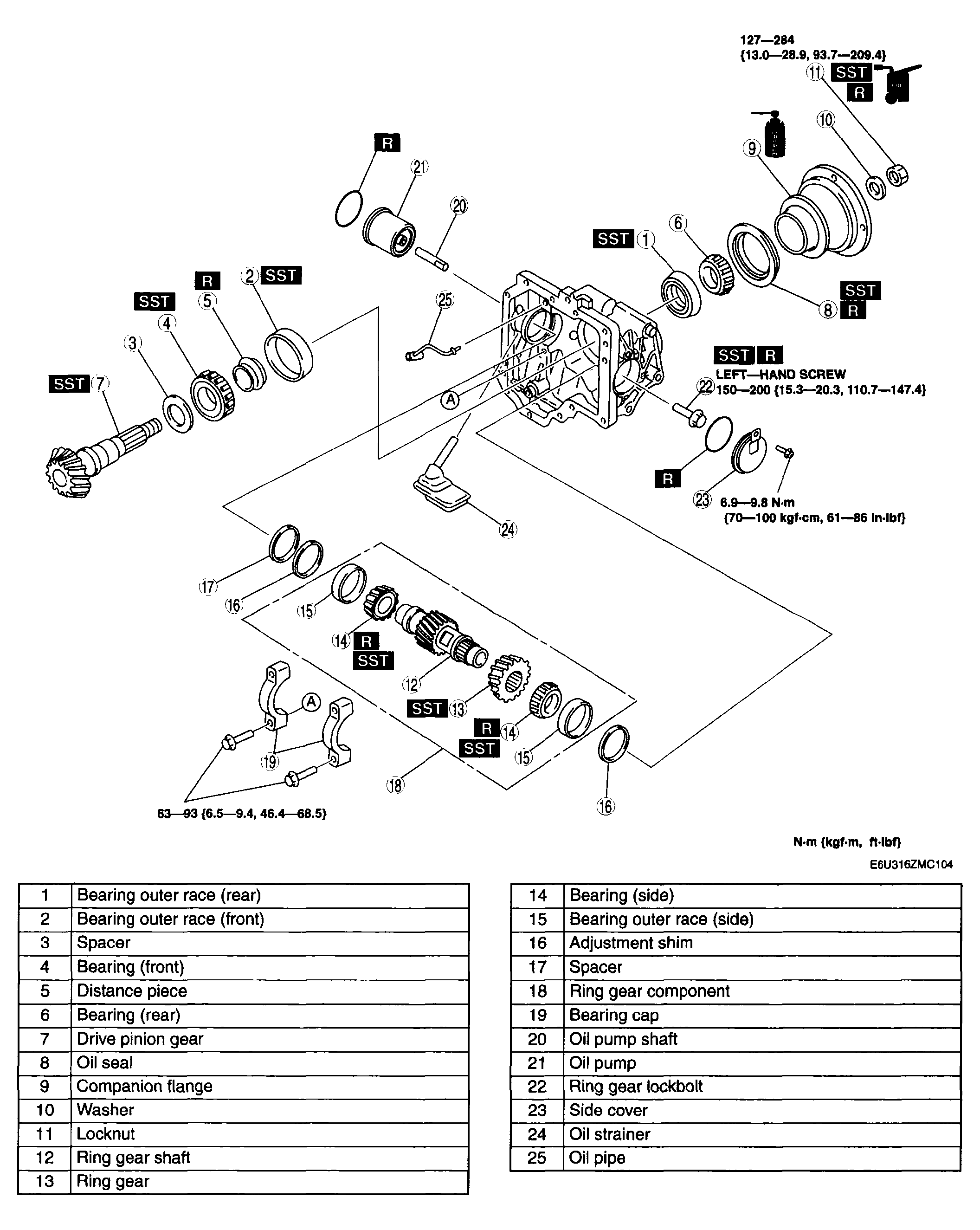

Fig 1: Front Carrier Components

G04330839

Courtesy of MAZDA MOTORS CORP.
