Coupling Component Removal Note

  1. Support the coupling unit with a transmission jack.
  2. Cut away the coupling unit using an oil pan seal cutter.

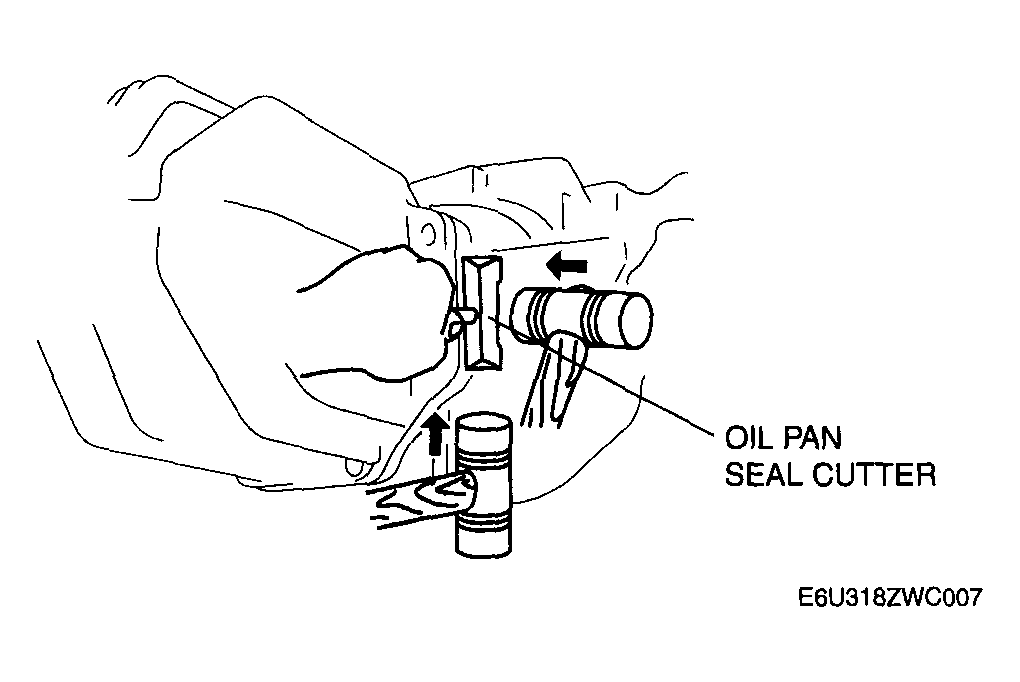

    Fig 1: Cutting Away Coupling Unit Using Oil Pan Seal Cutter
    G04325763Courtesy of MAZDA MOTORS CORP.
