Locknut Disassembly Note

  1. Assemble the SSTs to the engine stand.

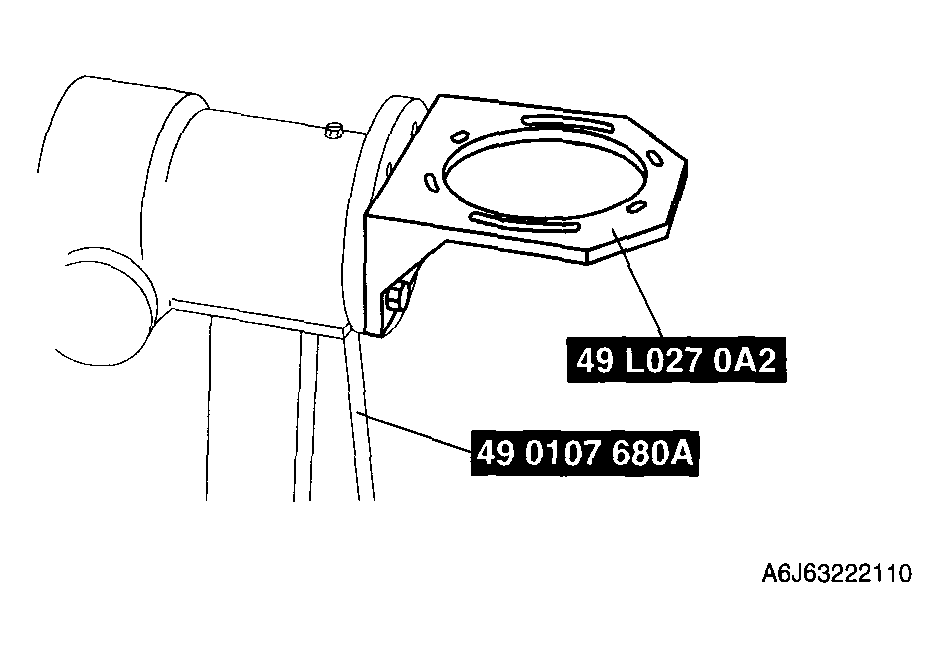

    Fig 1: Assembling SST To Engine Stand
    G04325766Courtesy of MAZDA MOTORS CORP.
  2. Install the coupling unit to the SSTs  as shown.

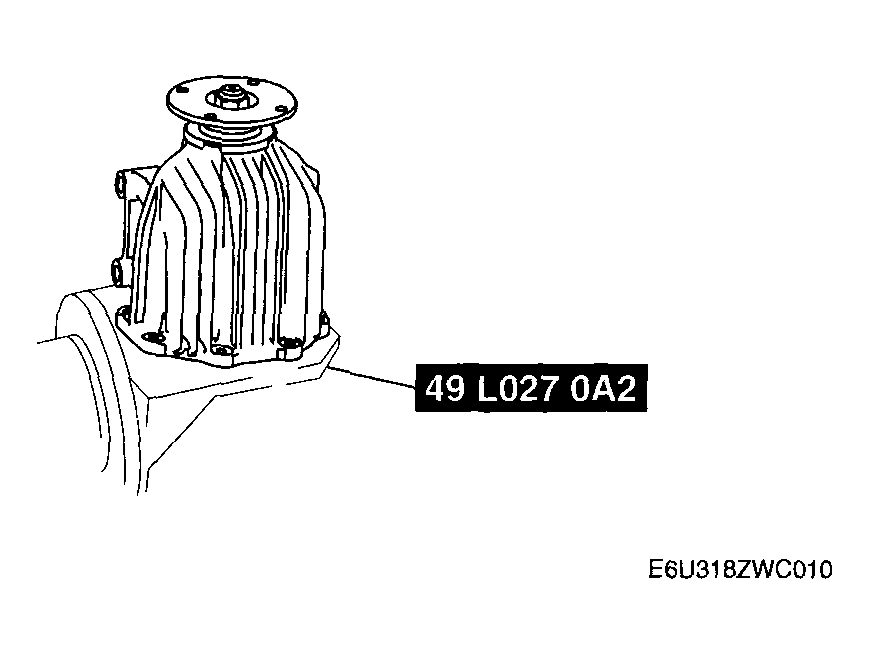

    Fig 2: Installing Coupling Unit To SST
    G04325767Courtesy of MAZDA MOTORS CORP.
  3. Secure the companion flange using the SST  , and remove the locknut.

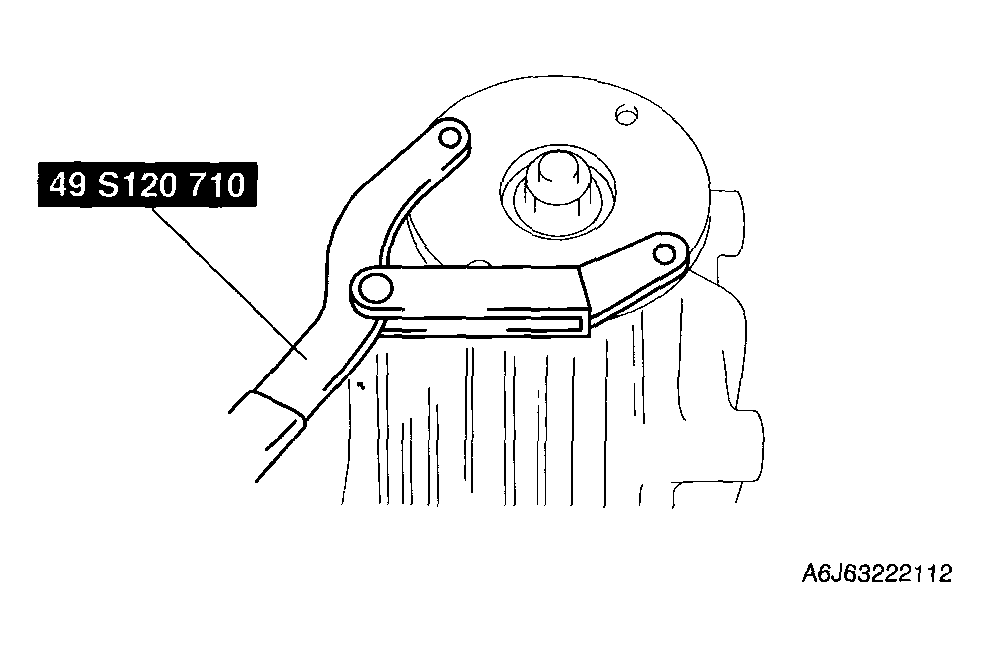

    Fig 3: Securing Companion Flange Using SST And Removing Locknut
    G04325768Courtesy of MAZDA MOTORS CORP.
