Oil Seal Assembly Note

  1. Apply the specified oil to a new oil seal lip.
  2. Install the oil seal to the coupling case using the SST  .

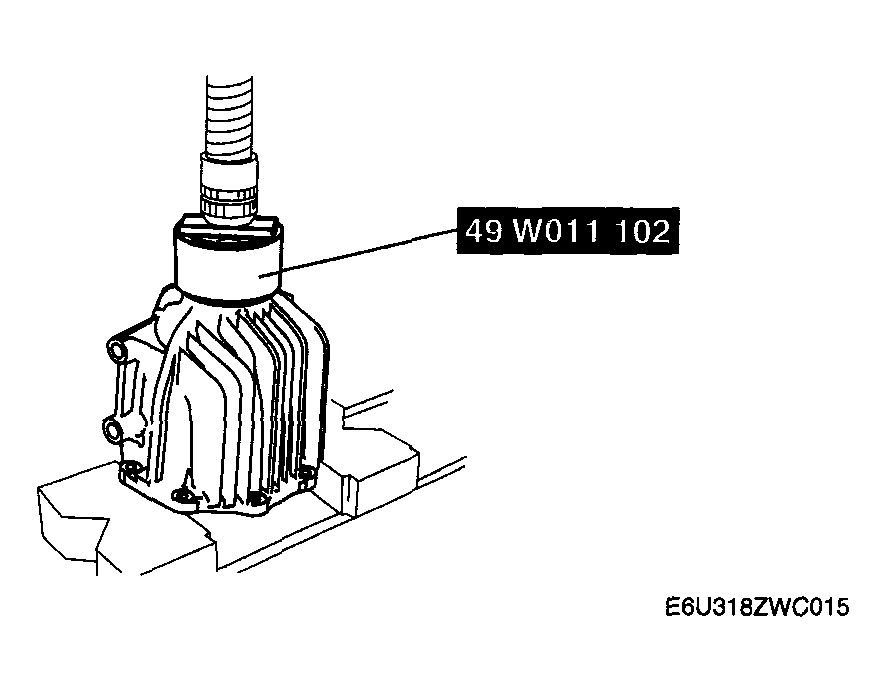

    Fig 1: Installing Oil Seal To Coupling Case
    G04325777Courtesy of MAZDA MOTORS CORP.
