Companion Flange Assembly Note

  1. Install the coupling case to the SSTs  as shown.
  2. Install the companion flange.

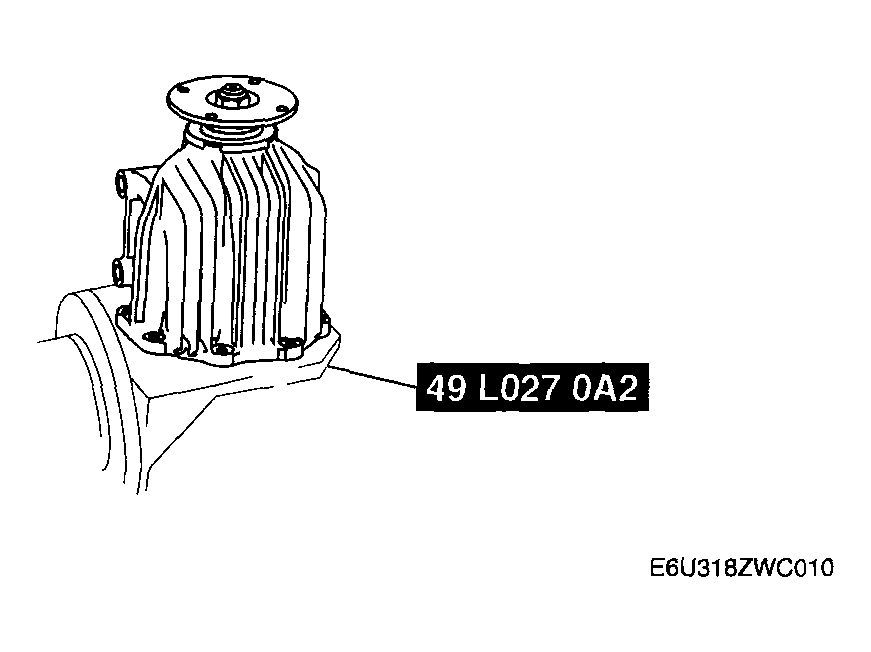

    Fig 1: Installing Coupling Case To SST
    G04325778Courtesy of MAZDA MOTORS CORP.
