Starter Interlock Switch Installation Note

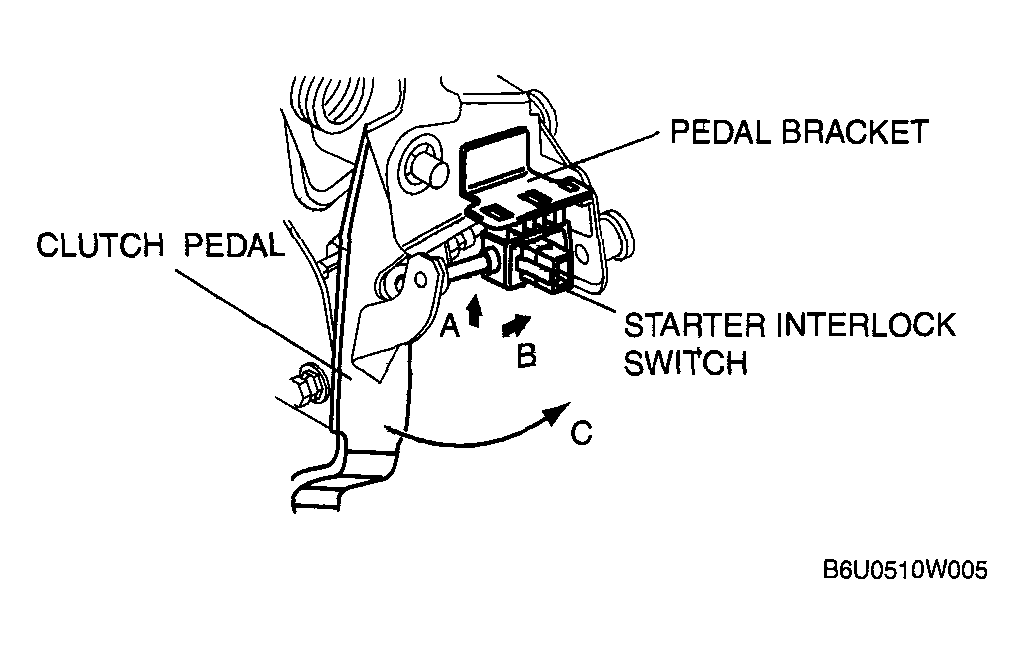

- Insert the starter interlock switch into the hole in the pedal bracket in the direction indicated by A.
- Slide the starter interlock switch press it in the direction indicated by B until locked.
- Press the clutch pedal fully in the direction indicated by C and adjust the starter interlock switch terminal.
