Clutch Master Cylinder Removal/Installation [G35M-R, A65M-R]

  1. Remove the battery and battery tray.
  2. Remove in the order indicated in the table.
  3. Plug the clutch pipe after removing it to avoid leakage.
  4. Install in the reverse order of removal.

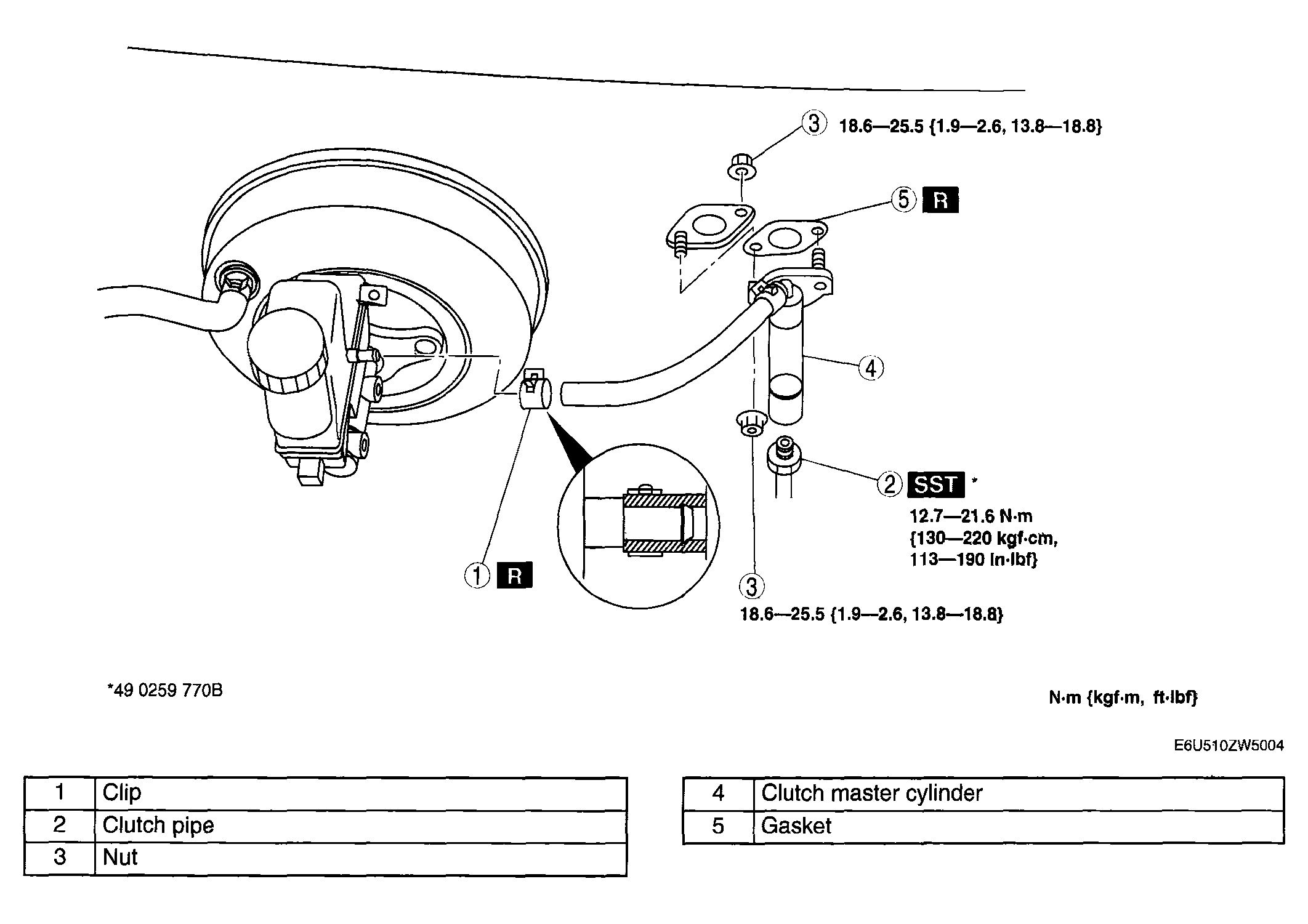

    Fig 1: Clutch Master Cylinder & Torque Specification (G35M-R)
    G04326079Courtesy of MAZDA MOTORS CORP.
