Primary Shaft Components Disassembly: Notes

Disassemble in the order shown in the figure.

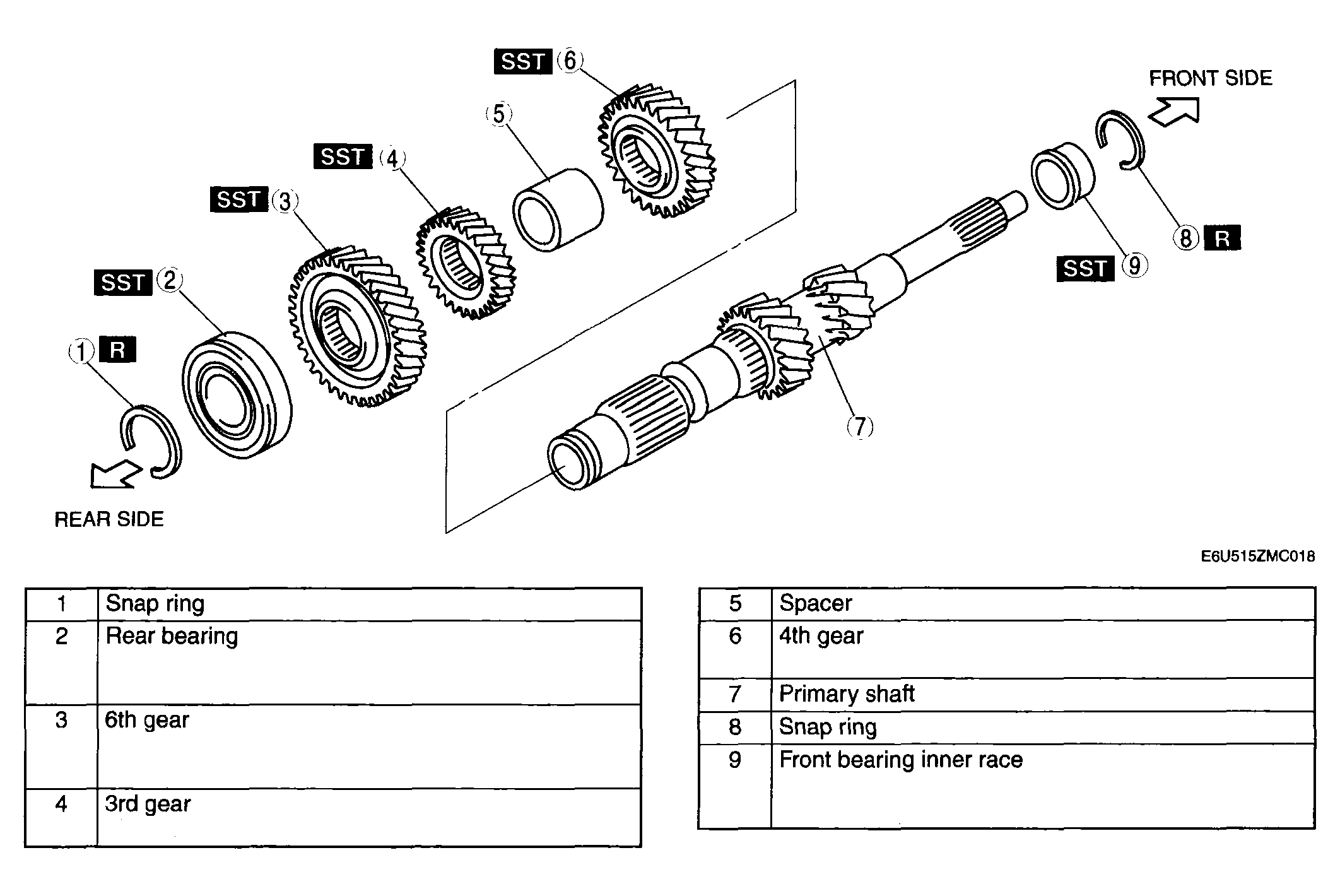

Fig 1: Disassembling View Of Primary Shaft Components

G04330938

Courtesy of MAZDA MOTORS CORP.
