Manual Transaxle - Overhaul (A26MX-R)
>>
Manual Transaxle
>>
Differential Disassembly
>>
Notes
Differential Disassembly: Notes
Disassemble in the order shown in the figure.

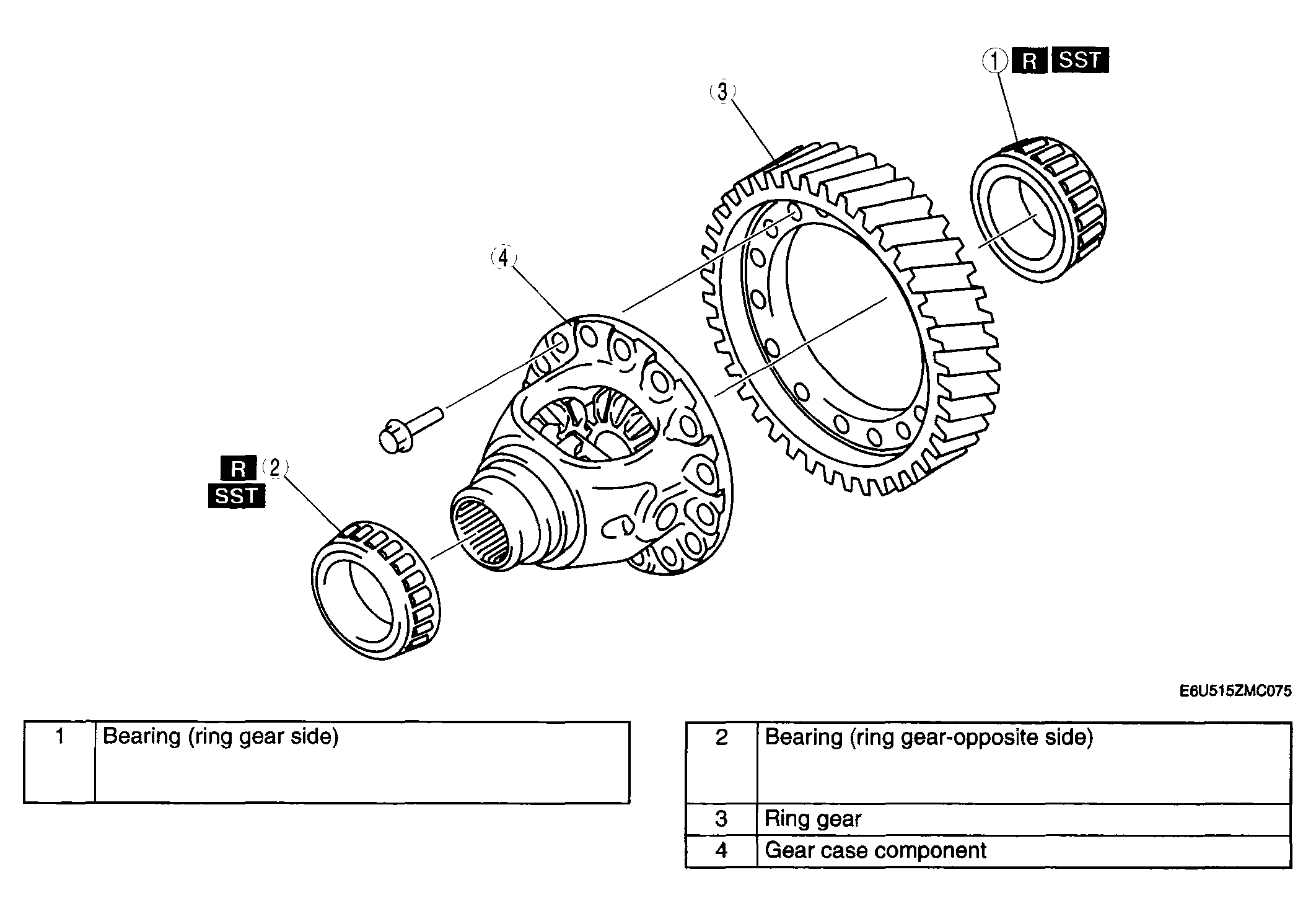

Fig 1: Disassembling View Of Differential
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
