G35M-R Manual Transaxle Models

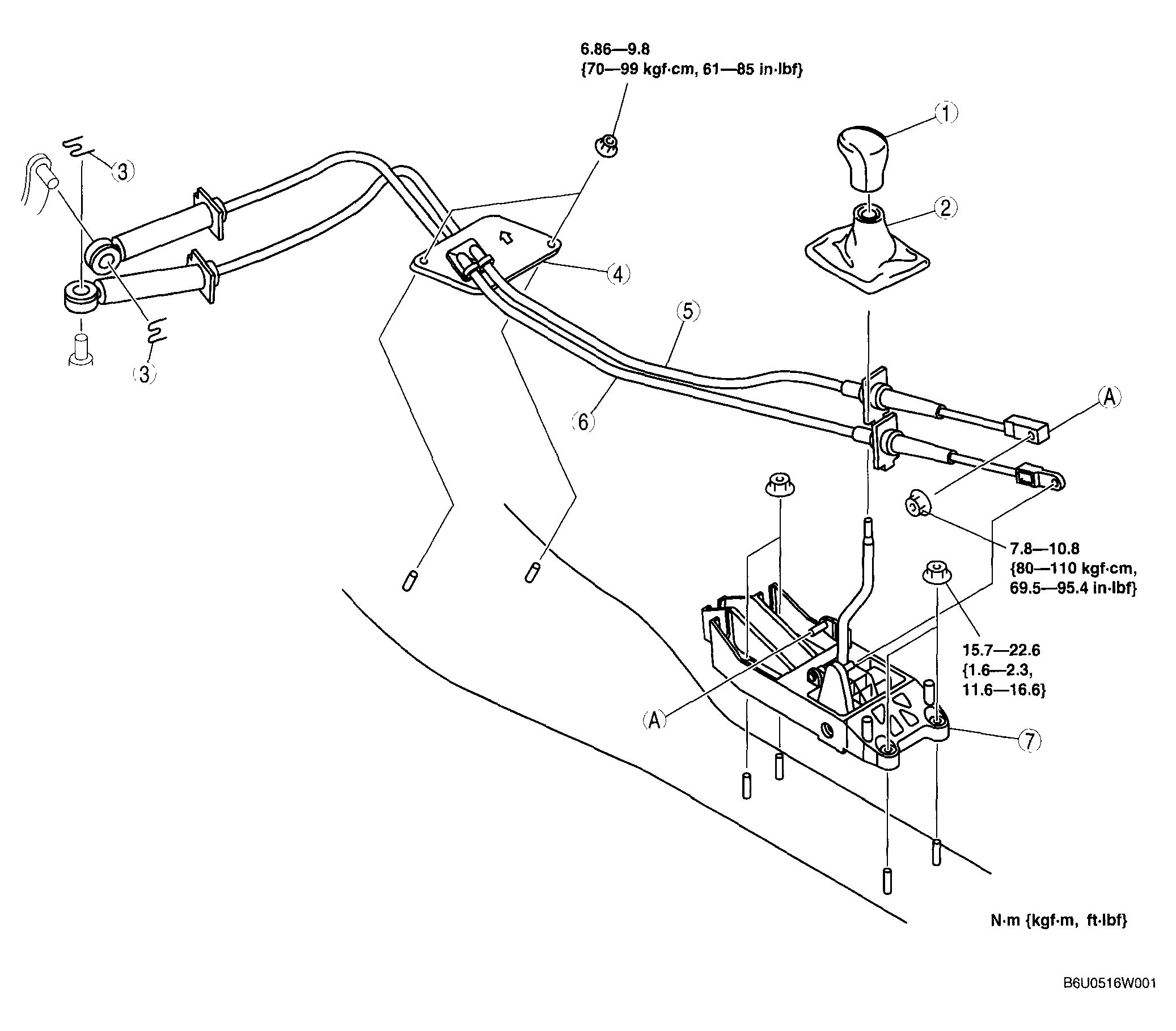

Fig 1: Removal/Installation Of Shift Mechanism & Torque Specification (G35M-R)

G04326195

Courtesy of MAZDA MOTORS CORP.
