Transverse Member Removal/Installation

  1. Remove the transverse member.
  2. Install the transverse member.

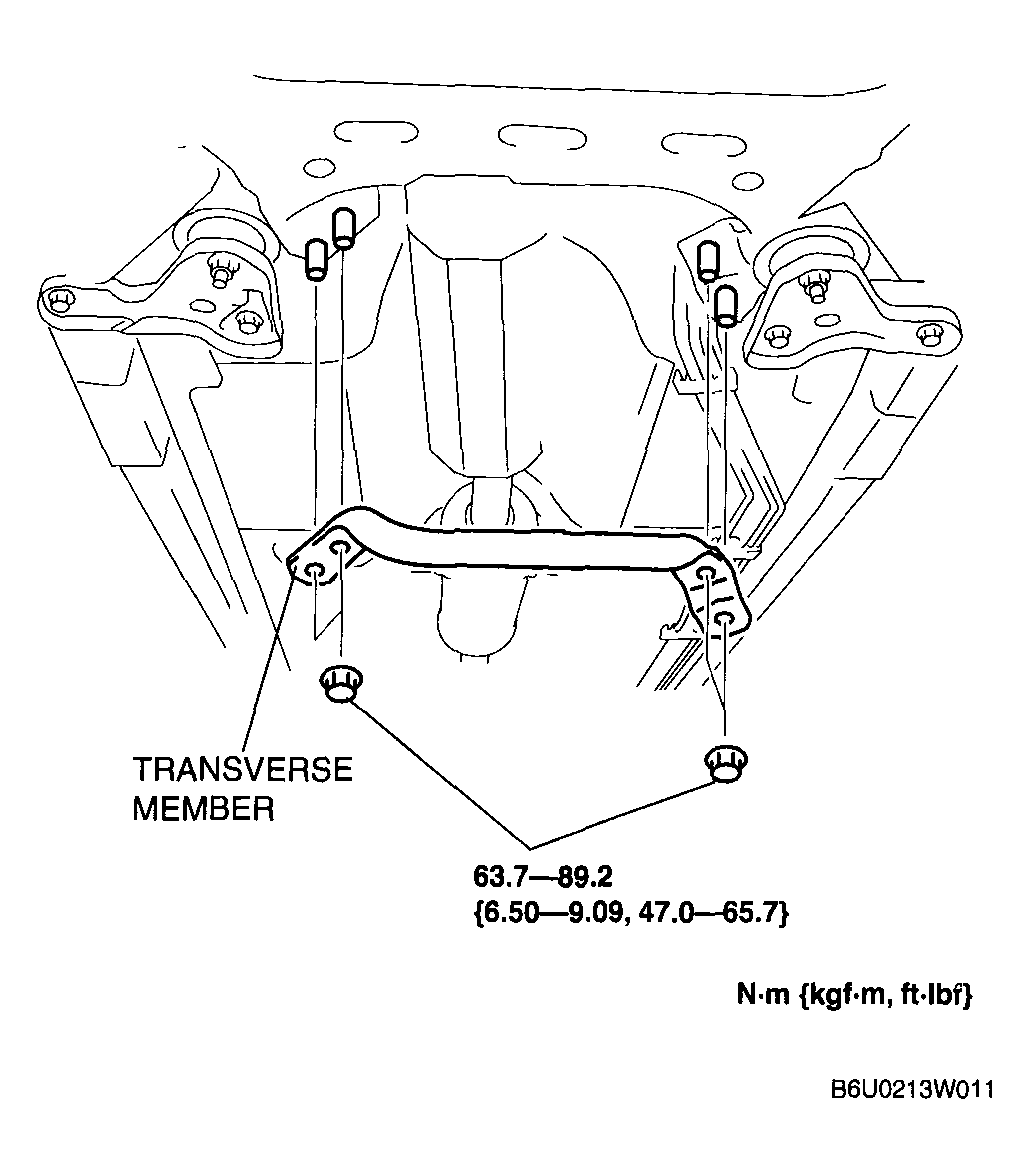

    Fig 1: Transverse Member & Torque Specification
    G04325480Courtesy of MAZDA MOTORS CORP.
