Clip Installation Note

  1. Wipe the grease off the ball stud.
  2. Fill the inside of the new dust boot with grease.
  3. Install the boot on the ball joint.
  4. Install the new clip using the SST  .
  5. Verify that the clip is installed securely to the groove.
  6. Wipe away the excess grease.

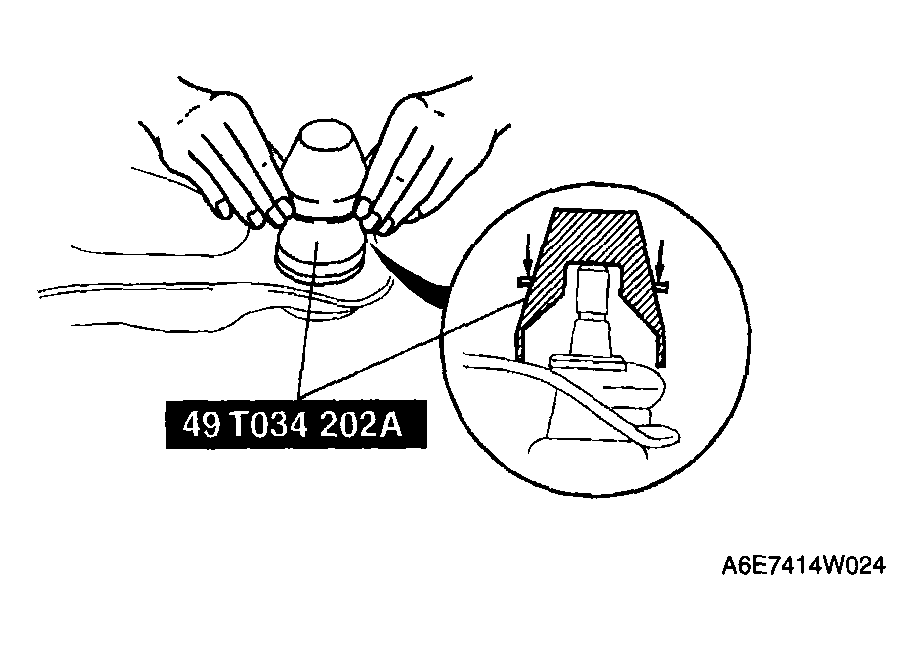

    Fig 1: Installing Clip Using SST
    G04325441Courtesy of MAZDA MOTORS CORP.
