Front Shock Absorber and Coil Spring Installation Note

Install the stud bolts at a 27°-33° angle from where the stabilizer control link is installed (center line), towards the inner side of the vehicle.

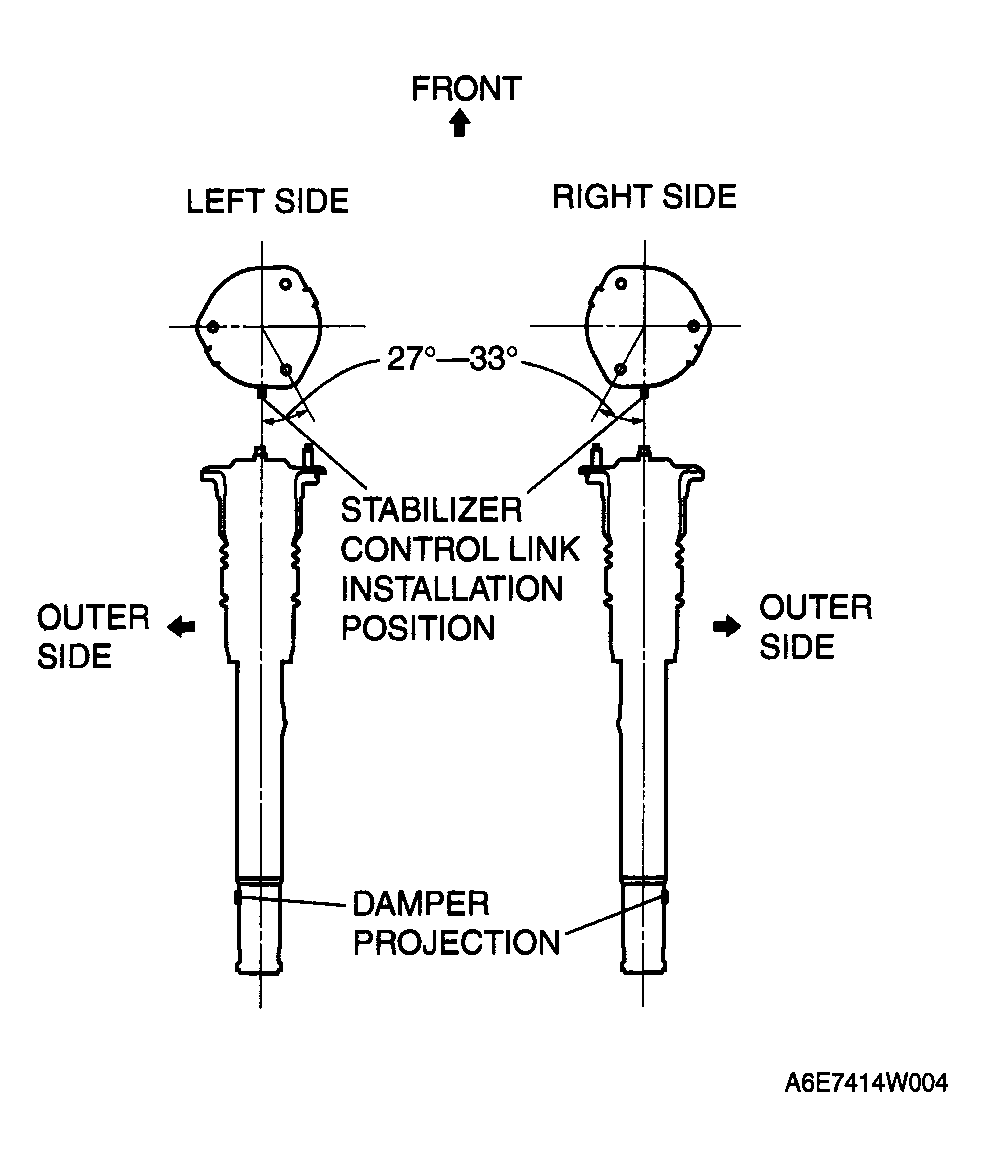

Fig 1: Installing Stud Bolts At 27°-33° Angle Stabilizer Control Link
Courtesy of MAZDA MOTORS CORP.
